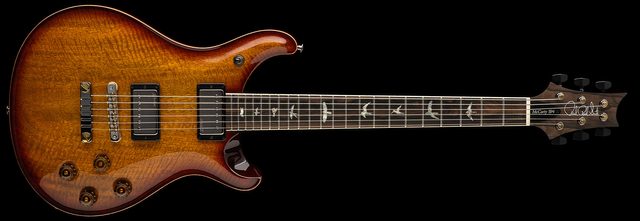

McCarty 594 Mango Top Limited Edition
McCarty 594 Mango Limited Edition

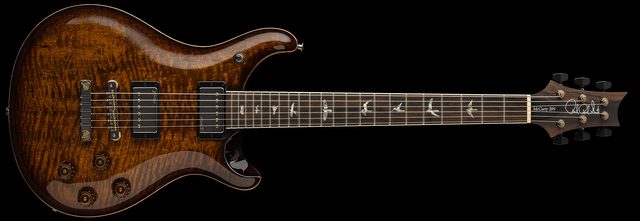

The McCarty 594 Mango Limited Edition reimagines PRS’s vintage inspired classic with unique wood appointments. Showcasing a figured mango top and ziricote fretboard, this update brings organic beauty and natural character to a model celebrated for its tonal depth and vintage feel. Only 200 total McCarty 594 Mango Limited Editions will be available in 2026.
At its heart, the McCarty 594 is designed to blend vintage soul with modern versatility. Featuring McCarty III pickups, this guitar offers a full, warm humbucking core with clear, vocal like nuance and responsiveness, whether you’re playing rich, classic tones or more nuanced single coil like flavors.

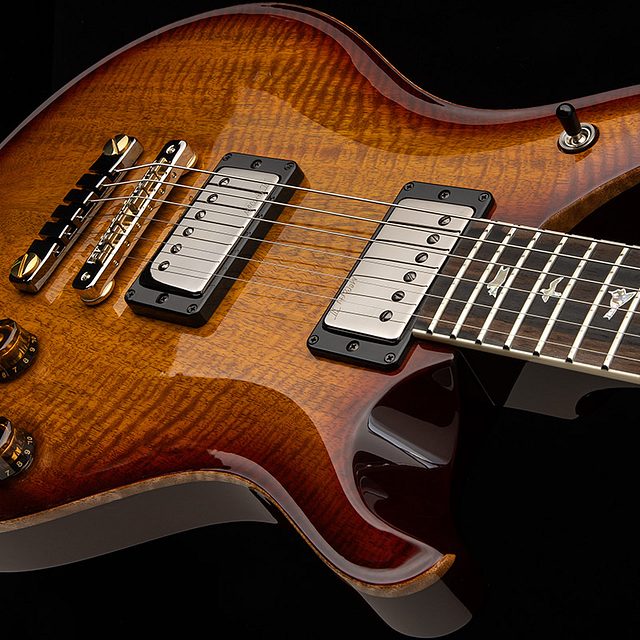

The figured mango top draws the eye with distinctive grain that shifts subtly as the guitar moves, giving the instrument a lively, organic presence. Built on a slightly thicker, mahogany body with a 24.594” scale length and bound neck, the McCarty 594 delivers a familiar feel that’s equally at home in classic blues, rock, jazz, and beyond. Its hardware includes a zinc two piece bridge with brass saddles and Phase III tuners with wing buttons, which provide resonance, stability, and lasting performance.
Whether you’re chasing soulful rhythm tones, singing lead lines, or dynamic vintage inspired sounds, the McCarty 594 Mango Limited Edition balances expressive richness, classic character, and striking visual appeal in one beautifully appointed instrument.
Featured Specifications

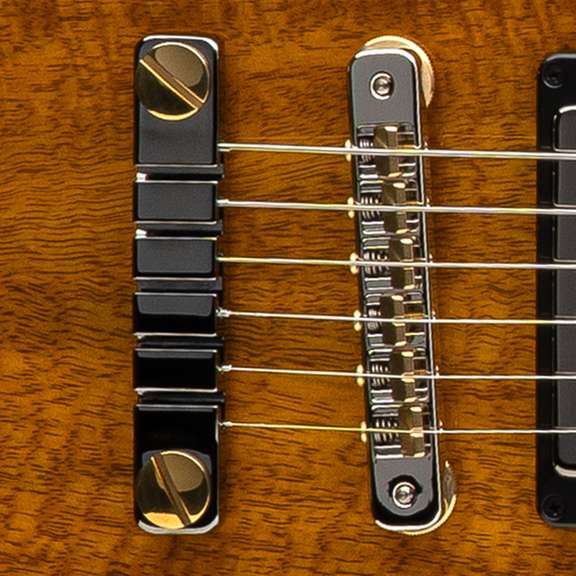

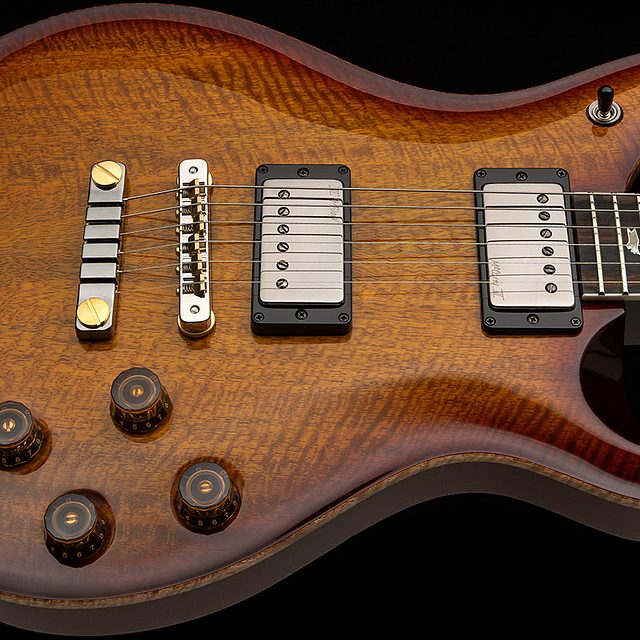

PRS Two-Piece Bridge
Made of zinc and brass, this bridge has four contact points and added mass, enhancing the natural tone of the guitar and helping to create a more resonant instrument.

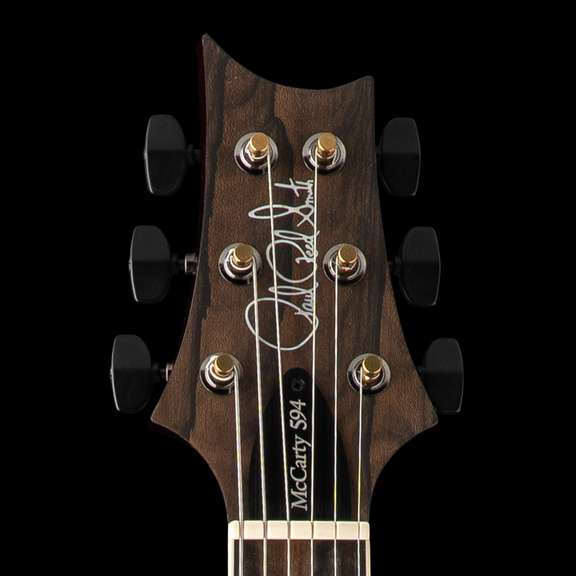

PRS Phase III Non-Locking Tuners with Wing Buttons
With vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

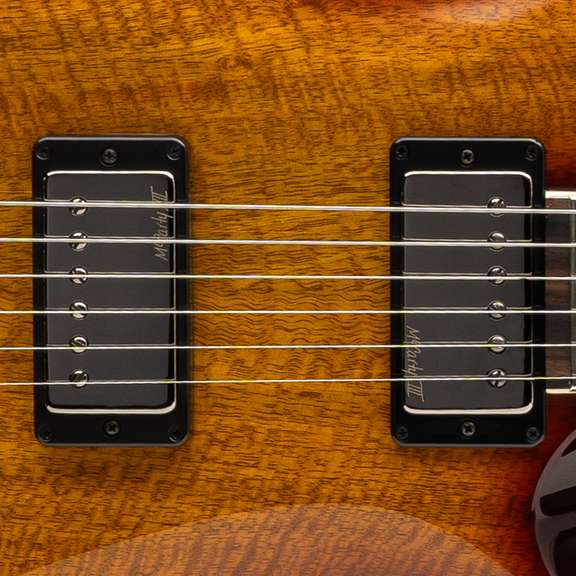

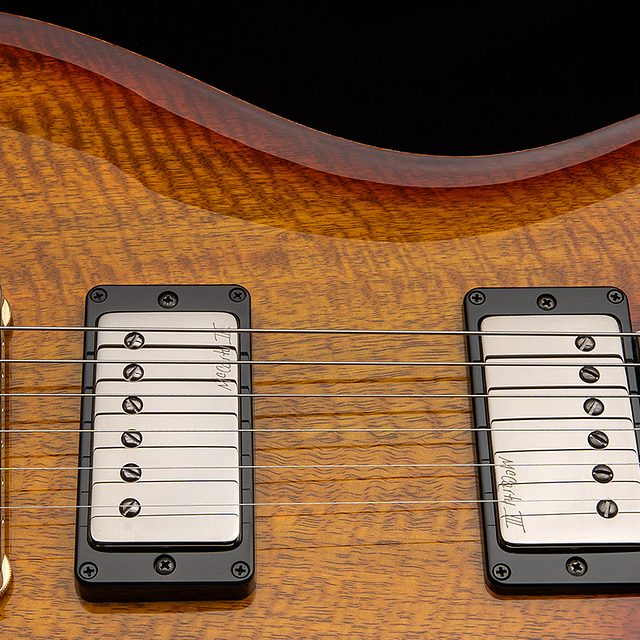

PRS McCarty III Pickups
Vintage-inspired pickups that bring a vocal clarity to their full, warm tone.
Specifications
| Body | |
| Body Construction | Solidbody |
| Top Wood | Figured Mango |
| Back Wood | Mahogany |
| Top Carve | Violin |
| Neck | |
| Number of Frets | 22 |
| Fret Wire | PRS Vintage Fret Wire |
| Width of Fret Crown | .110" |
| Height of Fret Crown | .050" |
| Scale Length | 24.594” |
| Neck Wood | Mahogany |
| Neck Construction | One-Piece |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Vintage |
| Neck Depth at the 1/2 Fret | 7/8" |
| Neck Depth at the 12 1/2 Fret | 63/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Ziricote |
| Fretboard Radius | 10" |

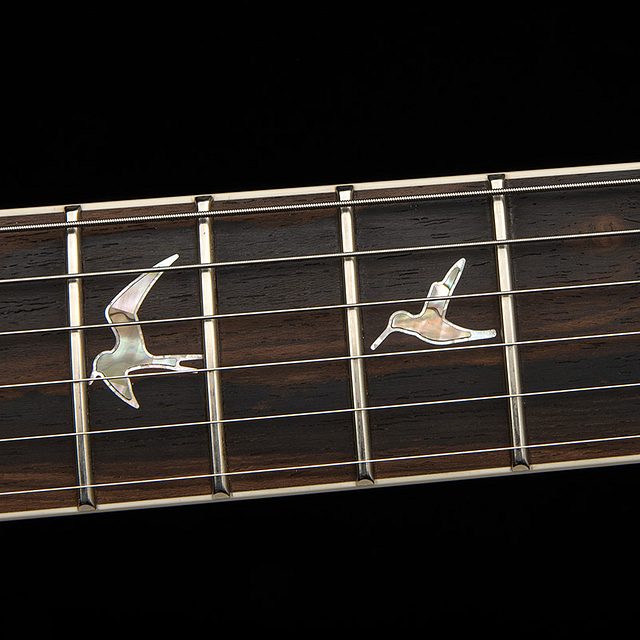

| Fretboard Inlay | Old School Birds with Outlines |

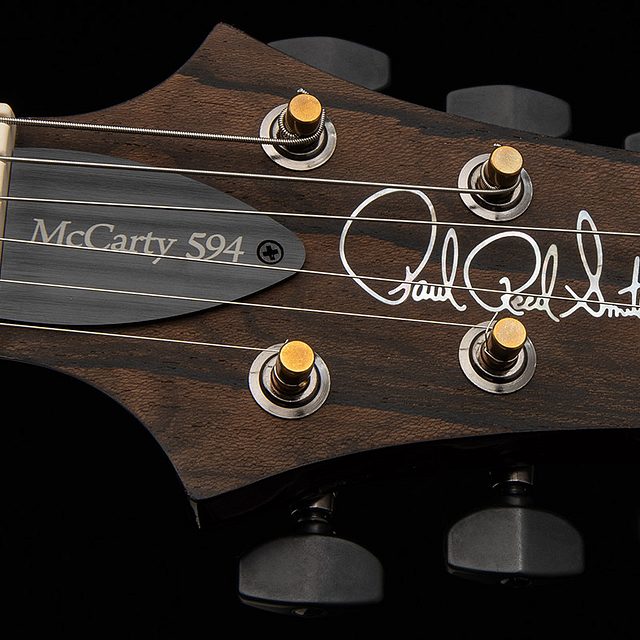

| Headstock Veneer | Ziricote |
| Headstock Logo | Signature, Inlaid |
| Neck Binding | Bone |
| Neck/Body Assembly | |
| Neck/Body Assembly Type | Set |
| Finish | |
| Finish Type | High-Gloss Nitro |
| Hardware | |
| Bridge | PRS Two-Piece |
| Tuners | PRS Phase III Non-Locking Tuners w/ Wing Buttons |
| Hardware Type | Smoked Black |
| Nut | Bone |
| Truss Rod Cover | McCarty 594 |
| Electronics | |
| Treble Pickup | McCarty III |
| Bass Pickup | McCarty III |
| Controls | Two Volume and Two Push/Pull Tone Controls with 3-Way Toggle Pickup Switch |
| Additional Info | |
| Strings | PRS Signature 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Hardshell Case |
Controls
McCarty 594 Mango Top Limited Edition - Controls Description

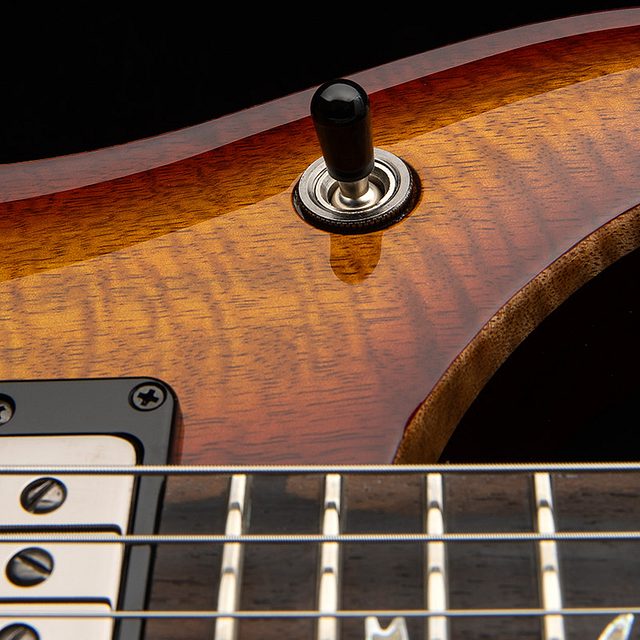

3-way toggle pickup switch
Position 1 (down) - treble pickup
Position 2 - treble and bass pickups
Position 3 (up) - bass pickup

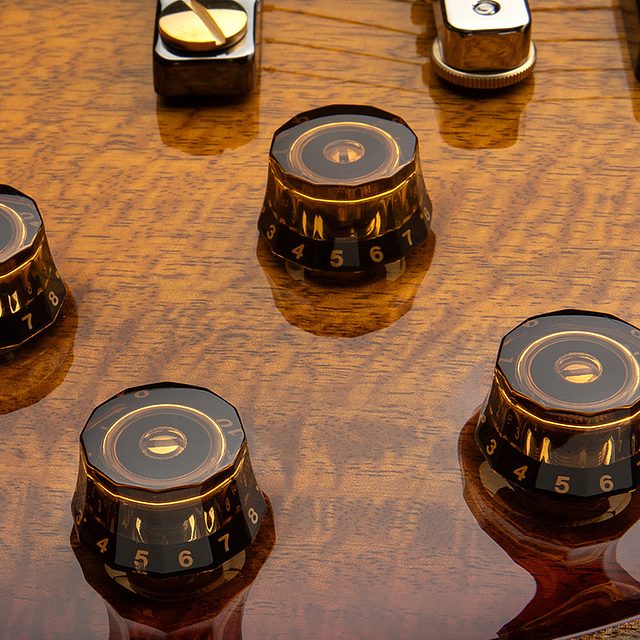

Push/pull tone pots
Down - humbucker mode
Up - single coil mode
