SE McCarty 594
Vintage Inspired Versatility
The SE McCarty 594 is a versatile, vintage-inspired instrument that delivers both humbucking and single-coil tones in a reliable, roadworthy guitar. Thanks to its dual volume and push/pull tone controls, the SE McCarty 594 can seamlessly master humbucking and single coil sonic territories, so players can find all the tones they are looking for.
Its 58/15 LT “S” pickups were carefully designed to deliver warm, vintage-inspired tone with sweetness and clarity. The zinc two-piece bridge and vintage-style tuners anchor the SE McCarty 594 and stay true to its vintage promise, while the classic PRS body shape and bird inlays add a hint of modern style to this classic feature set. Other features include a bound 22-fret Pattern Vintage neck and slightly thicker back for sustain.
Designed to capture the heart of the McCarty family of instruments, the SE McCarty 594 is high-quality workhorse instrument.
Featured Specifications
PRS Two-Piece Bridge
Made of zinc and brass, this bridge has four contact points and added mass, enhancing the natural tone of the guitar and helping to create a more resonant instrument.
PRS 58/15 LT “S”
“Low turn” pickups with vintage warmth and welcome clarity, designed to PRS’s specifications.

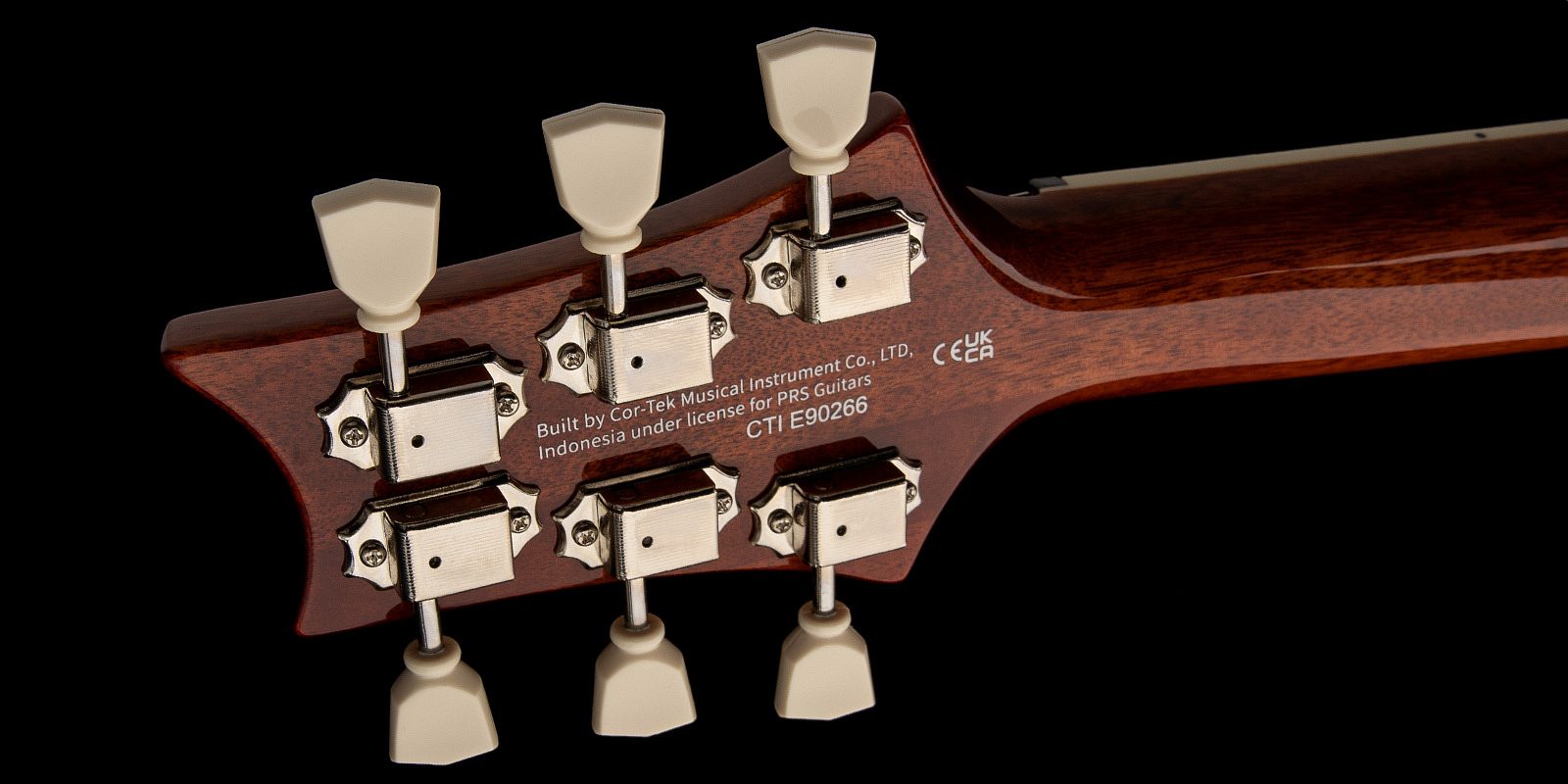

Vintage-Style Tuners
Traditional closed-back tuners engineered to promote resonance.
Specifications
| Body | |
| Body Construction | Solidbody |
| Top Wood | Maple |
| Veneer | Flame Maple |
| Back Wood | Mahogany |
| Top Carve | Shallow Violin |
| Neck | |
| Number of Frets | 22 |
| Scale Length | 24.594” |
| Neck Wood | Bound Mahogany |
| Neck Construction | Multi-Ply |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Vintage |
| Neck Depth at the 1/2 Fret | 7/8" |
| Neck Depth at the 12 1/2 Fret | 63/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |

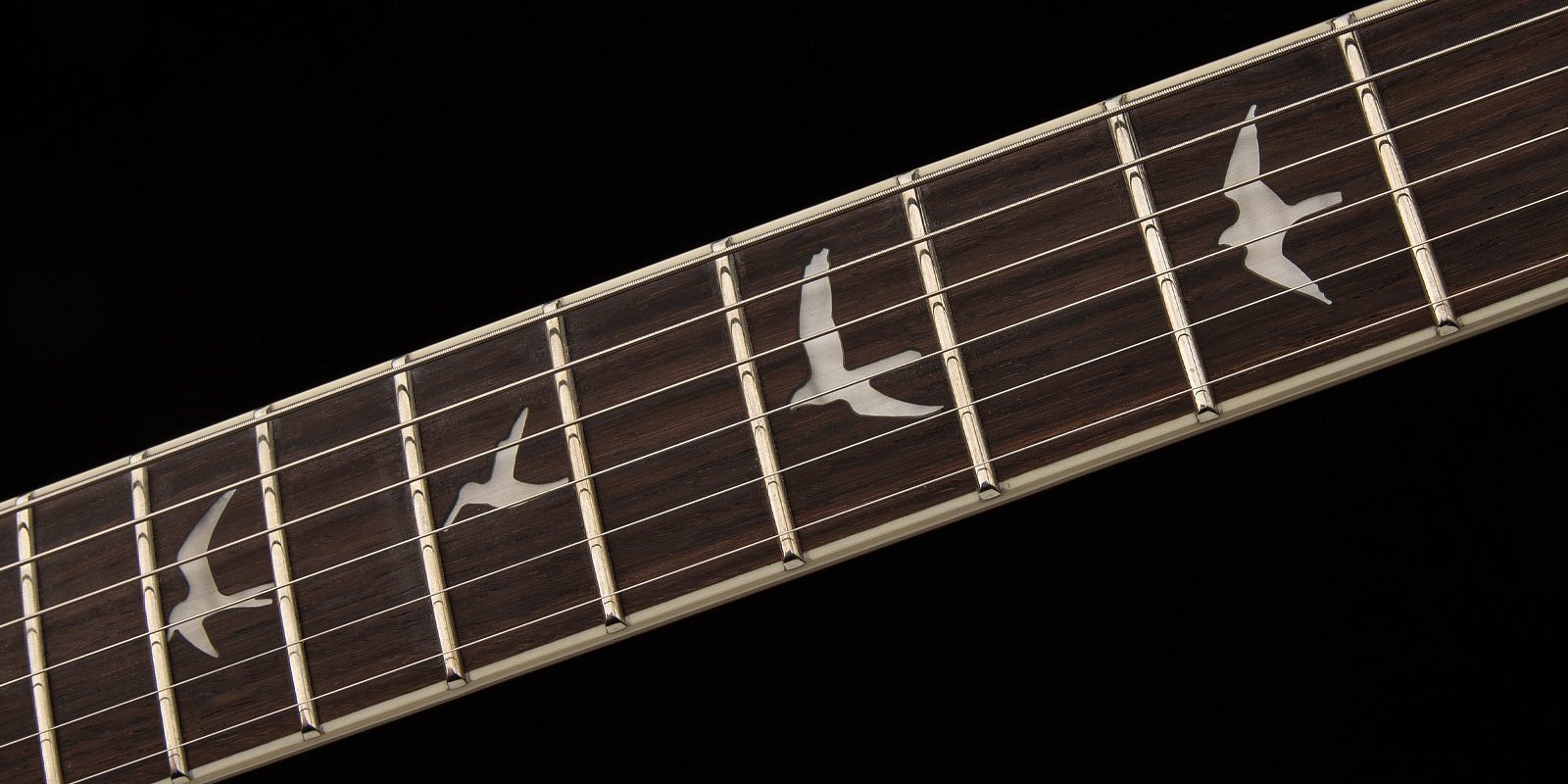

| Fretboard Inlay | Birds |
| Headstock Logo | Signature "SE" |
| Neck/Body Assembly | |
| Neck/Body Assembly Type | Set |
| Hardware | |
| Bridge | PRS Two-Piece |
| Tuners | Vintage-Style |
| Hardware Type | Nickel |
| Nut | PRS |
| Truss Rod Cover | "McCarty 594" |
| Electronics | |
| Treble Pickup | 58/15 LT "S" |
| Bass Pickup | 58/15 LT "S" |

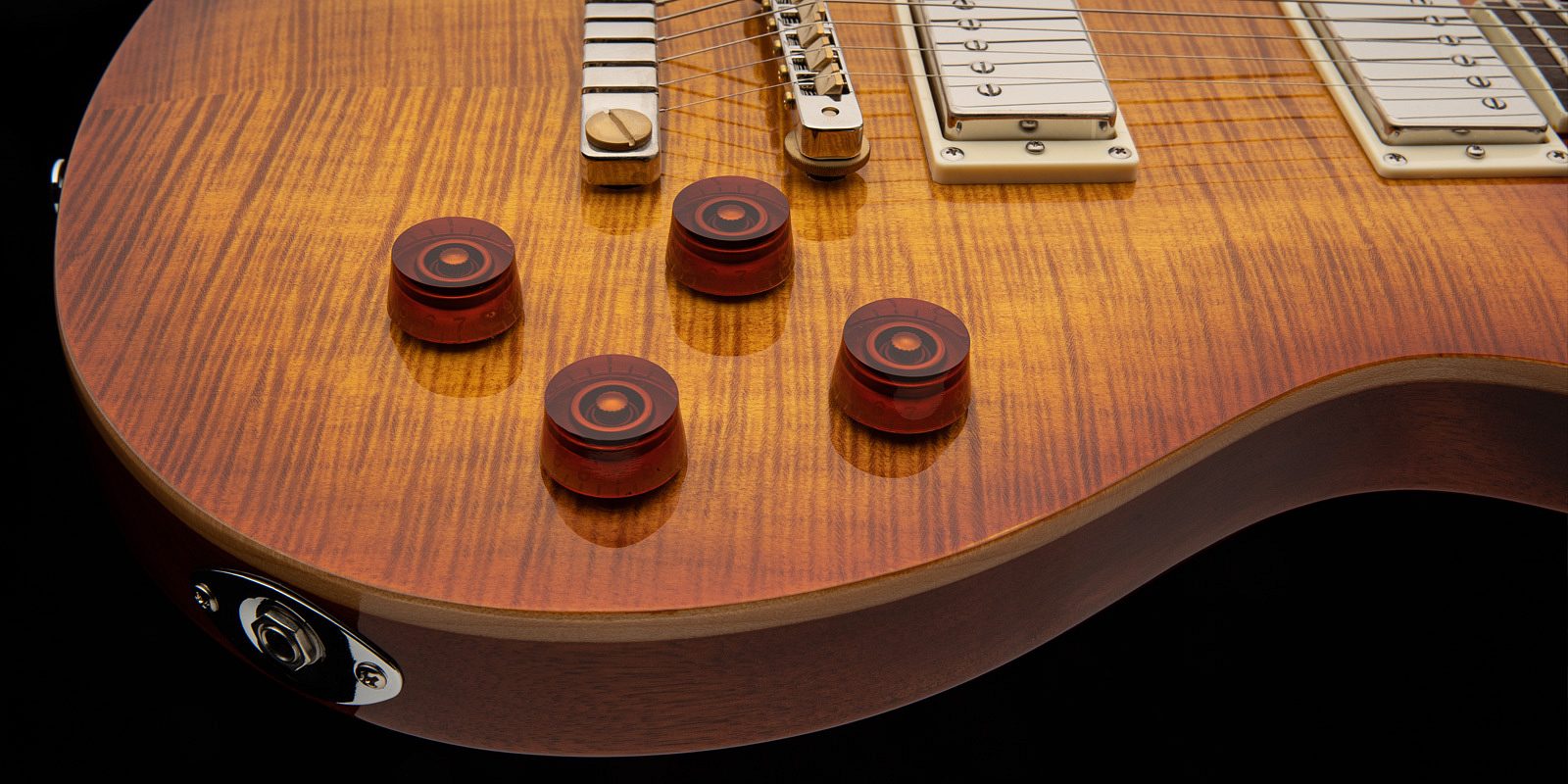

| Controls | Two Volume and Two Push/Pull Tone Controls with 3-Way Toggle Pickup Switch on Upper Bout |
| Additional Info | |
| Strings | PRS Classic 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Gig Bag |
Controls
SE McCarty 594 - Controls Description
Position 1: (Switch Down) Treble / Humbucker
Position 1: Treble / Coil-Tap
Position 2: Treble / Humbucker - Bass / Humbucker
Position 2: Treble / Coil-Tap - Bass / Coil-Tap
Position 2: Treble / Humbucker - Bass / Coil-Tap
Position 3: Bass / Humbucker
Position 3: (Switch Up) Bass / Coil-Tap
Colors
Black Gold Burst
Faded Blue
Vintage Sunburst
