SE Hollowbody II Piezo
Acoustic and Electric Tones In One
The SE Hollowbody II Piezo combines the balanced, clear, resonant tone of a hollowbody instrument with the power and stability of a solid-body electric guitar. Constructed with a maple back and top with mahogany sides, the SE Hollowbody II Piezo offers a light shimmer and snap in an attractive package. The 58/15 LT “S” pickups deliver clarity and balance that sound big and musical in a hollowbody platform.
Boasting an LR Baggs/PRS Piezo system, the SE Hollowbody II Piezo provides musicians with the versatility of wielding both acoustic and electric tones in one instrument. The instrument is designed with two discrete volume controls (magnetics and piezo) and output jacks (mix/piezo and magnetics). Players can plug into the “Mix/Piezo” jack and use the individual volume controls to blend the 58/15 LT “S” pickups with the piezo’s acoustic tones. Alternatively, players can plug into the jacks separately, so the guitar can run magnetic pickups into an amp and run the piezo through an acoustic amp or DI into the soundboard. When using the magnetic output jack in isolation, the piezo battery is bypassed completely, acting as a failsafe (in this scenario, the magnetic pickups still work even if the piezo battery has run out of juice).
Featured Specifications

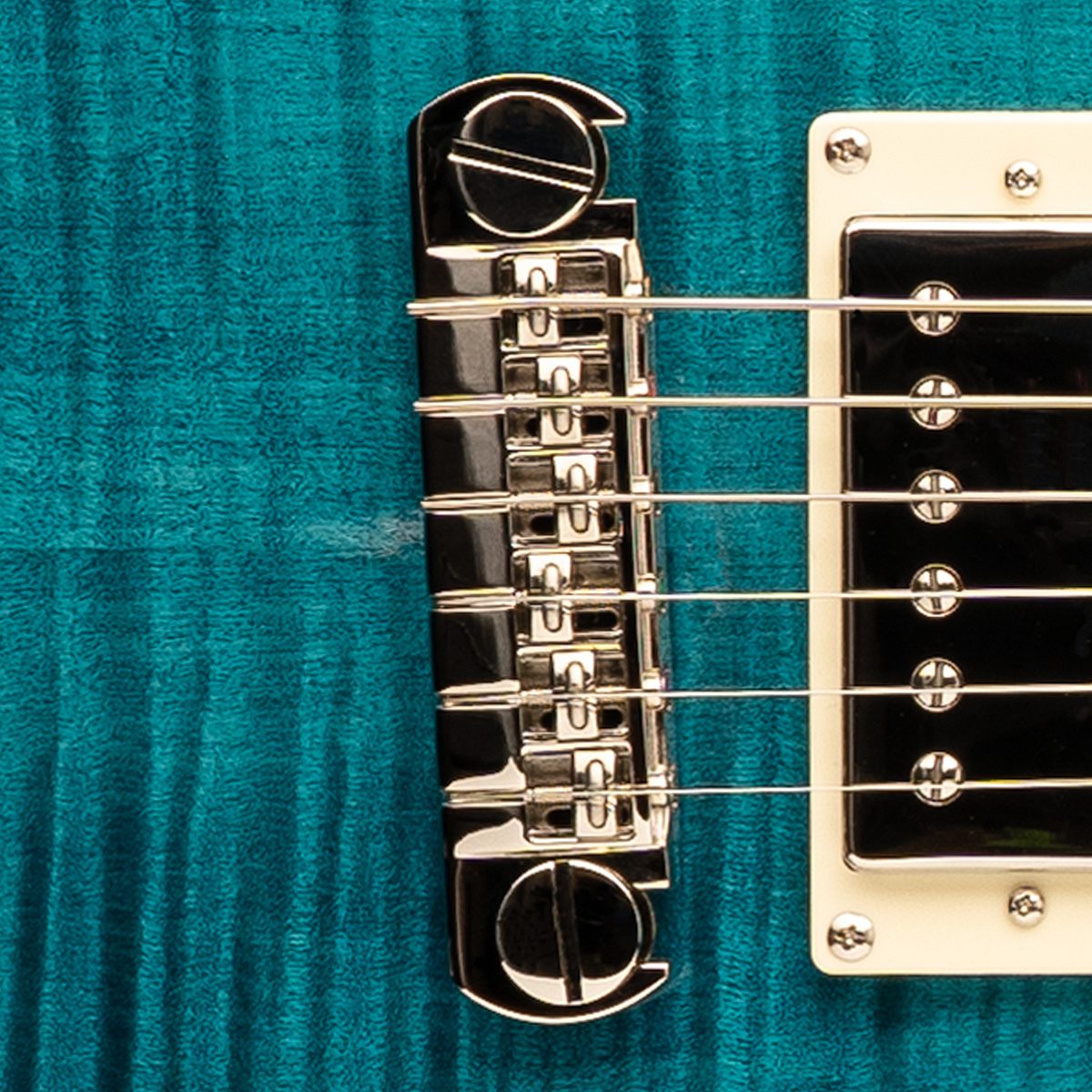

PRS Adjustable 'Piezo' Stoptail
Including six individual piezo-equipped saddles, this bridge works with the LR Baggs/PRS proprietary piezo electronics, to effortlessly achieve electric and acoustic sounds in one instrument.

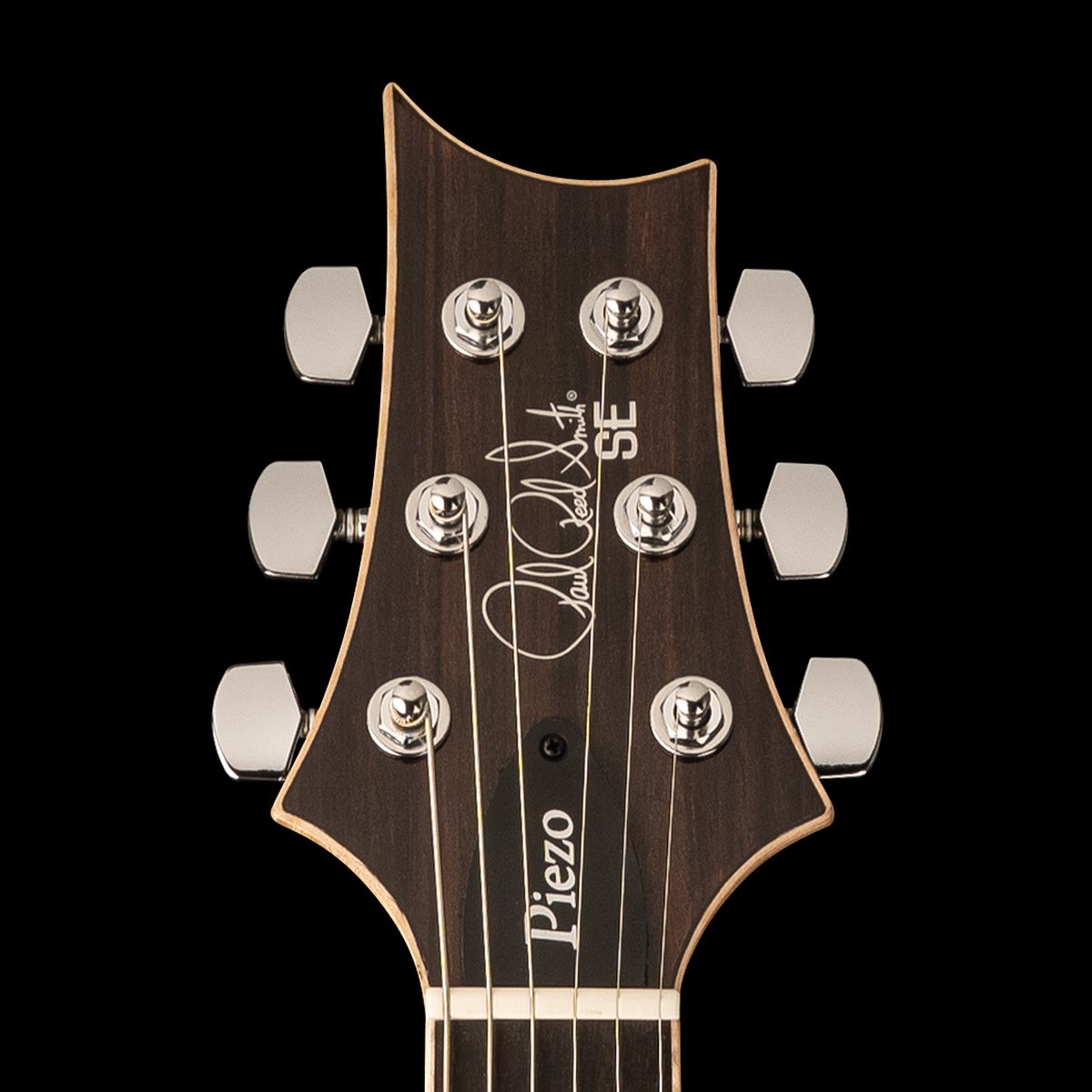

PRS-Designed Tuners
Designed to PRS's specifications, these lightweight tuners provide precise tuning and won't dampen your tone.

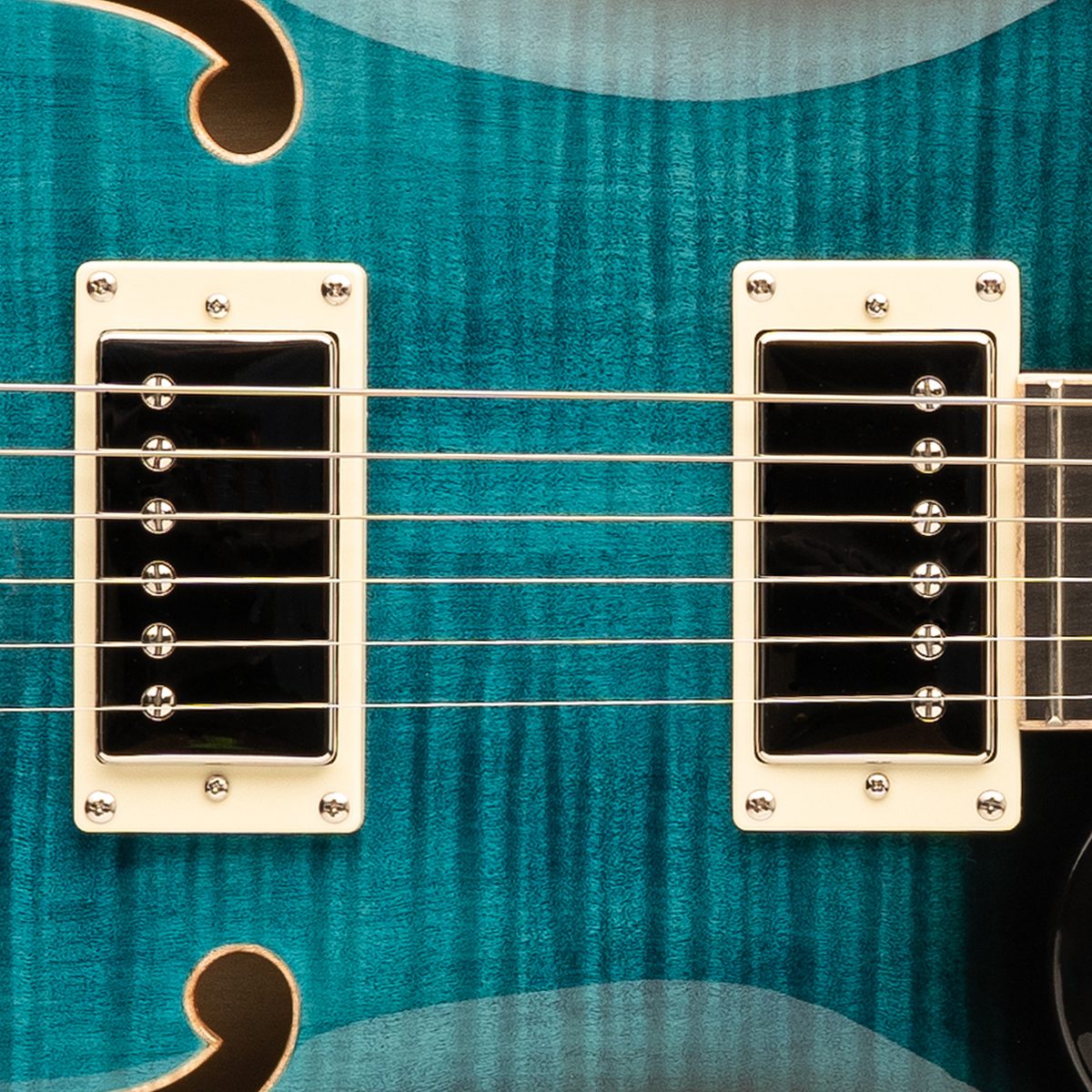

PRS 58/15 LT “S”
“Low turn” pickups with vintage warmth and welcome clarity, designed to PRS’s specifications.
Specifications
Body | |
Body Construction | Hollowbody |
Top Wood | Maple |
Veneer | Flame Maple |
Middle Wood | Mahogany |
Back Wood | Maple |
Neck | |
Number of Frets | 22 |
Scale Length | 25" |
Neck Wood | Mahogany |
Neck Construction | Multi-Ply |
Truss Rod | PRS Double-Acting |
Neck Shape | Wide Fat |
Neck Depth at the 1/2 Fret | 7/8" |
Neck Depth at the 12 1/2 Fret | 61/64" |
Neck Width at the Nut | 1 11/16" |
Neck Width at the Body | 2 1/4" |
Fretboard Wood | Ebony |
Fretboard Radius | 10" |
Fretboard Inlay | Birds |
Headstock Logo | Signature "SE" |
Neck/Body Assembly | |
Neck/Body Assembly Type | Set |
Hardware | |
Bridge | PRS Adjustable 'Piezo' Stoptail |
Tuners | PRS Designed Tuners |
Hardware Type | Nickel |
Nut | Bone |
Truss Rod Cover | "Piezo" |
Electronics | |
Treble Pickup | 58/15 LT "S" |
Bass Pickup | 58/15 LT "S" |
Controls | Magnetic Volume, Piezo Volume, and Tone Control with 3-Way Toggle Pickup Switch |
Additional Info | |
Strings | PRS Classic 10-46 |
Tuning | Standard (6 String): E, A, D, G, B, E |
Case | Hardshell Case |
Controls
SE Hollowbody II Piezo - Controls Description
3-way toggle pickup switch
Position 1 (down) - treble pickup
Position 2 - treble and bass pickups
Position 3 (up) - bass pickup
Piezo volume only active when plugged into mix/piezo output jack
