SE Custom 24 Semi-Hollow Piezo
Electric and Acoustic Tones
The PRS SE Custom 24 Semi-Hollow Piezo is a highly sophisticated and incredibly versatile instrument. The Custom 24 is the original design first introduced by PRS in 1985 as a solidbody guitar with maple top, mahogany back, dual humbuckers, and the patented PRS tremolo. This semi-hollow version adds natural resonance and a vibrant, organic tone.

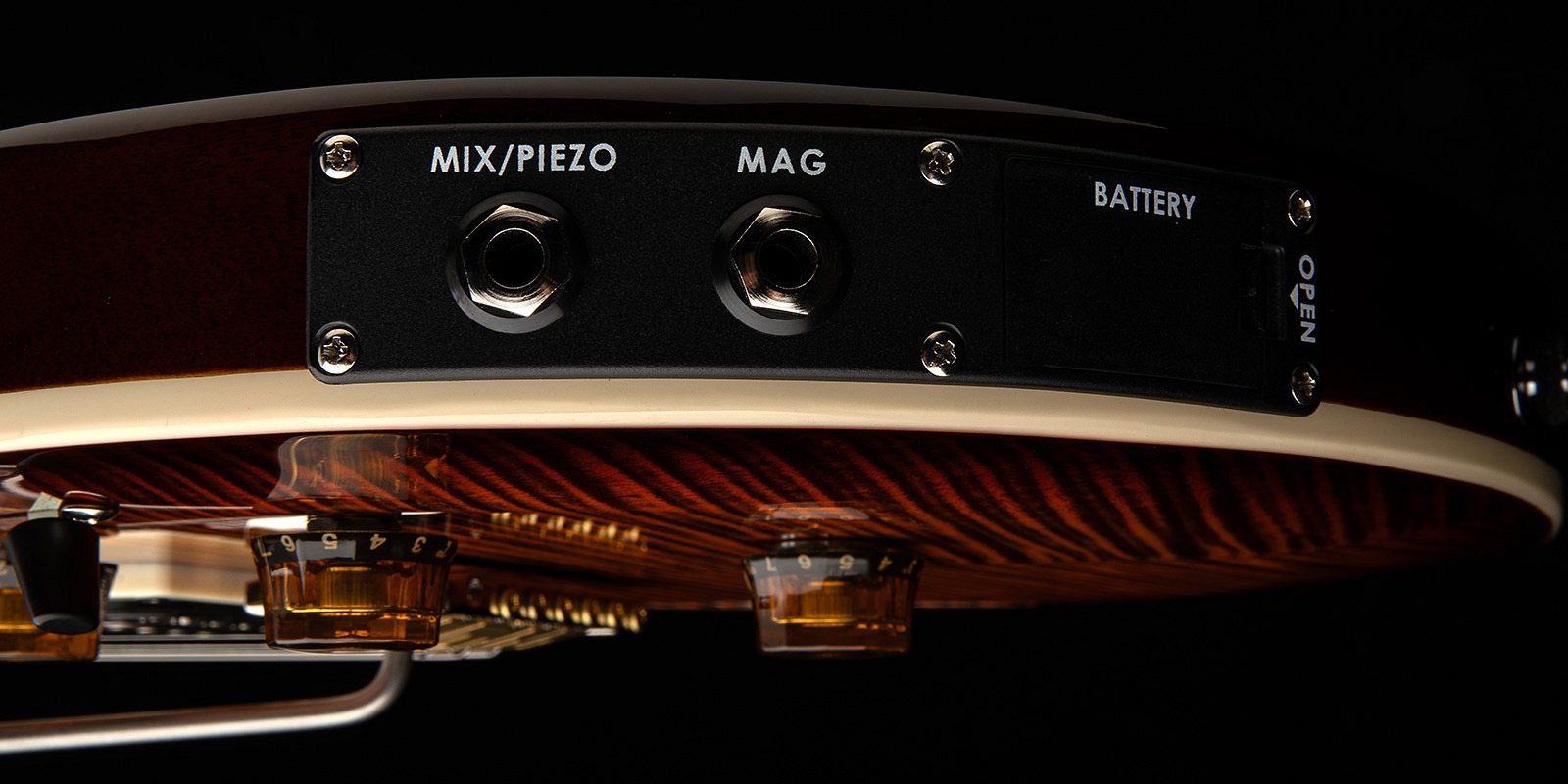

The humbuckers in this model are PRS 85/15 “S” pickups, which can be tapped via the push/pull tone control for more sounds. The addition of the LR Baggs/PRS Piezo system furthers the instrument’s versatility by offering electric and acoustic tones in one guitar. The PRS SE Custom 24 Semi-Hollow Piezo is designed with two discrete volume controls (magnetics and piezo) and output jacks (mix/piezo and magnetics). Players can plug into the “Mix/Piezo” jack and use the individual volume controls to blend the 85/15 “S” pickups with the piezo’s acoustic tones. Alternatively, players can plug into the jacks separately, so the guitar can run magnetic pickups into an amp and run the piezo through an acoustic amp or DI into the soundboard. When using the magnetic output jack in isolation, the piezo battery is bypassed completely, acting as a failsafe (in this scenario, the magnetic pickups still work even if the piezo battery has run out of juice).
Additional details include a matching headstock veneer, headstock and fretboard binding, and lampshade knobs. With nearly infinite tones and roadworthy reliability, the PRS SE Custom 24 Semi-Hollow Piezo is a modern classic that looks and feels as good as it sounds.
Featured Specifications
PRS Patented Tremolo, Molded
Patented design, delivering tonal fidelity, player comfort, and tuning stability.
PRS-Designed Tuners
Designed to PRS's specifications, these lightweight tuners provide precise tuning and won't dampen your tone.
PRS 85/15 “S”
Uncovered pickups designed to PRS’s specifications with clarity and extended high and low end – perfect for modern applications.
Specifications
Body | |
Body Construction | Semi-Hollow Body with Single F-Hole |
Top Wood | Maple |
Veneer | Flame Maple |
Back Wood | Mahogany |
Top Carve | Shallow Violin |
Neck | |
Number of Frets | 24 |
Scale Length | 25" |
Neck Wood | Maple |
Neck Construction | Multi-Ply |
Truss Rod | PRS Double-Acting |
Neck Shape | Wide Thin |
Neck Depth at the 1/2 Fret | 13/16" |
Neck Depth at the 12 1/2 Fret | 57/64" |
Neck Width at the Nut | 1 11/16" |
Neck Width at the Body | 2 1/4" |
Fretboard Wood | Rosewood |
Fretboard Radius | 10" |
Fretboard Inlay | Birds |
Headstock Logo | Signature "SE" |
Neck/Body Assembly | |
Neck/Body Assembly Type | Set |
Hardware | |
Bridge | PRS Patented Tremolo |
Tuners | PRS Designed Tuners |
Hardware Type | Nickel |
Nut | PRS |
Truss Rod Cover | "Custom" |
Electronics | |
Treble Pickup | 85/15 “S” |
Bass Pickup | 85/15 “S” |
Controls | Piezo Volume, Magnetic Volume and Push/Pull Tone Control w/ 3-Way Blade Switch |
Additional Info | |
Strings | PRS Classic 10-46 |
Tuning | Standard (6 String): E, A, D, G, B, E |
Case | Gig Bag |

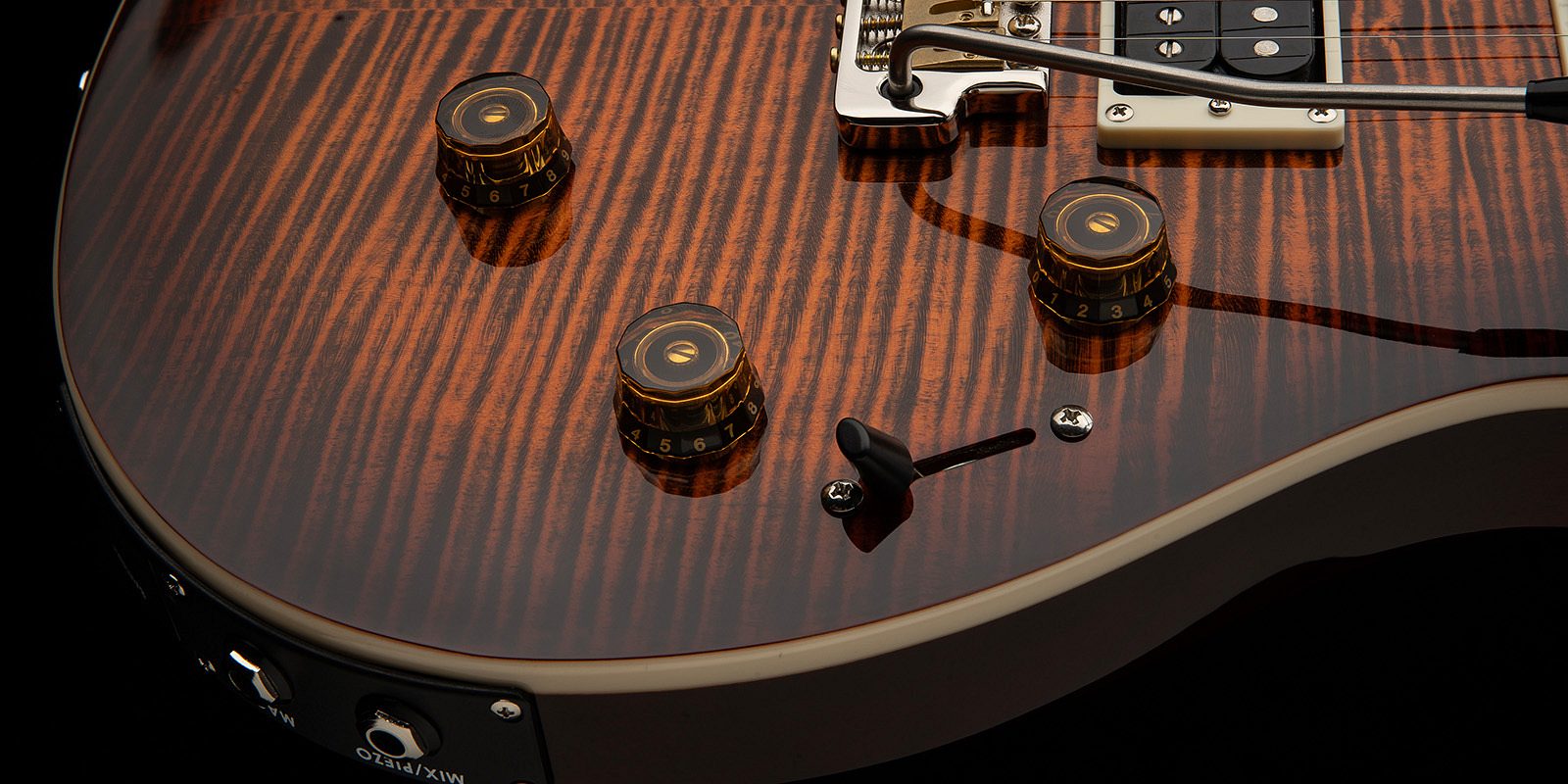

Controls
SE Custom 24 Semi-Hollow Piezo - Controls Description
Position 1 - Treble/Humbucker
Position 2 - Treble/Humbucker & Bass/Humbucker
Position 3 - Bass/Humbucker
Volume Knob Up - Coil-Tap
Blend Knob - Balance Piezo with Magnetic Output to Taste (when plugged into piezo jack, becomes piezo volume only)
