S2 McCarty 594 Thinline
Gig-Ready Power
The S2 McCarty 594 Thinline is an all-mahogany, thin-body guitar with a powerful voice. Whether you are looking for authentic humbucking tones or nuanced, sweet single-coil sounds, the S2 McCarty 594 Thinline can seamlessly master both sonic territories thanks to its Maryland, USA-made 58/15 LT pickups and dual volume and push/pull tone controls.
The S2 McCarty 594 Thinline is addictive to play, thanks in part to its all-mahogany body, versatile control layout, and bound 22-fret Pattern Thin neck. The distinctive, powerful voice is backed by modern construction, so it plays in tune, stays in tune, and is intonated the entire length of the neck. A zinc two-piece bridge and vintage-style tuners anchor this guitar and stay true to the promise of the McCarty family.
Designed to capture the heart of the McCarty family of instruments and stay true to the S2 Series spirit, the S2 McCarty 594 Thinline stands on its own as a gig-ready workhorse for the player who wants to cover a lot of musical ground.
After ten years, the PRS S2 Series is being updated with USA-made pickup and electronics for 2024 (and beyond). We are proud to bring this added value to what has become a fully integrated part of our manufacturing line and product offering. We have also updated our Vintage-Style tuners to include a new “Wing” button. While, aesthetically, these new buttons are designed to echo the 12th fret bird wingspan design, they were first and foremost designed for tonal reasons. Because these buttons are lighter weight than their metal predecessors, they are subtracting less energy from the vibrating strings, thus helping the guitar ring longer and at a more musical note. The removal of the tuner’s locking feature on non-tremolo-equipped guitars further decreases their weight.
Featured Specifications

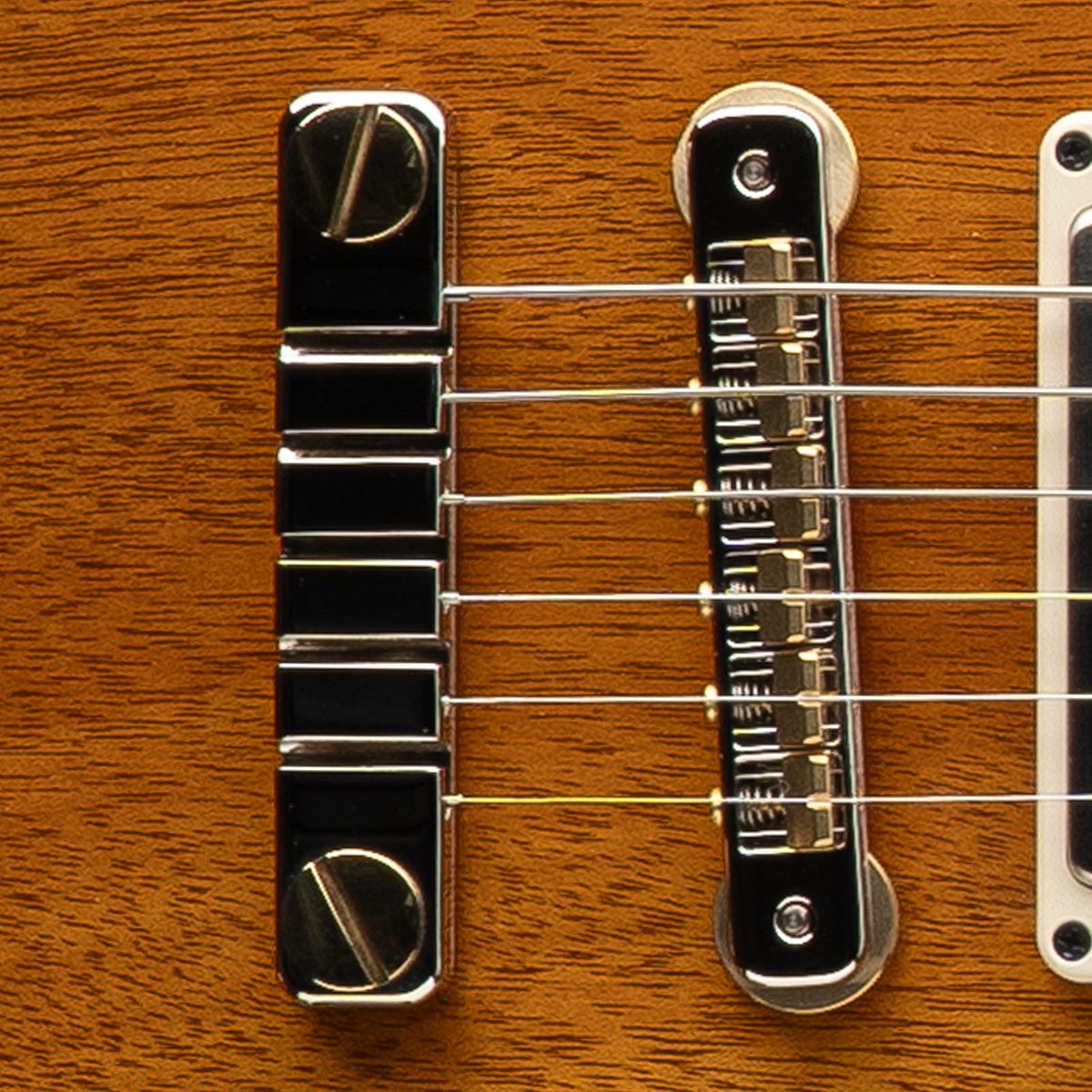

PRS Two-Piece Bridge
Made of zinc and brass, this bridge has four contact points and added mass, enhancing the natural tone of the guitar and helping to create a more resonant instrument.

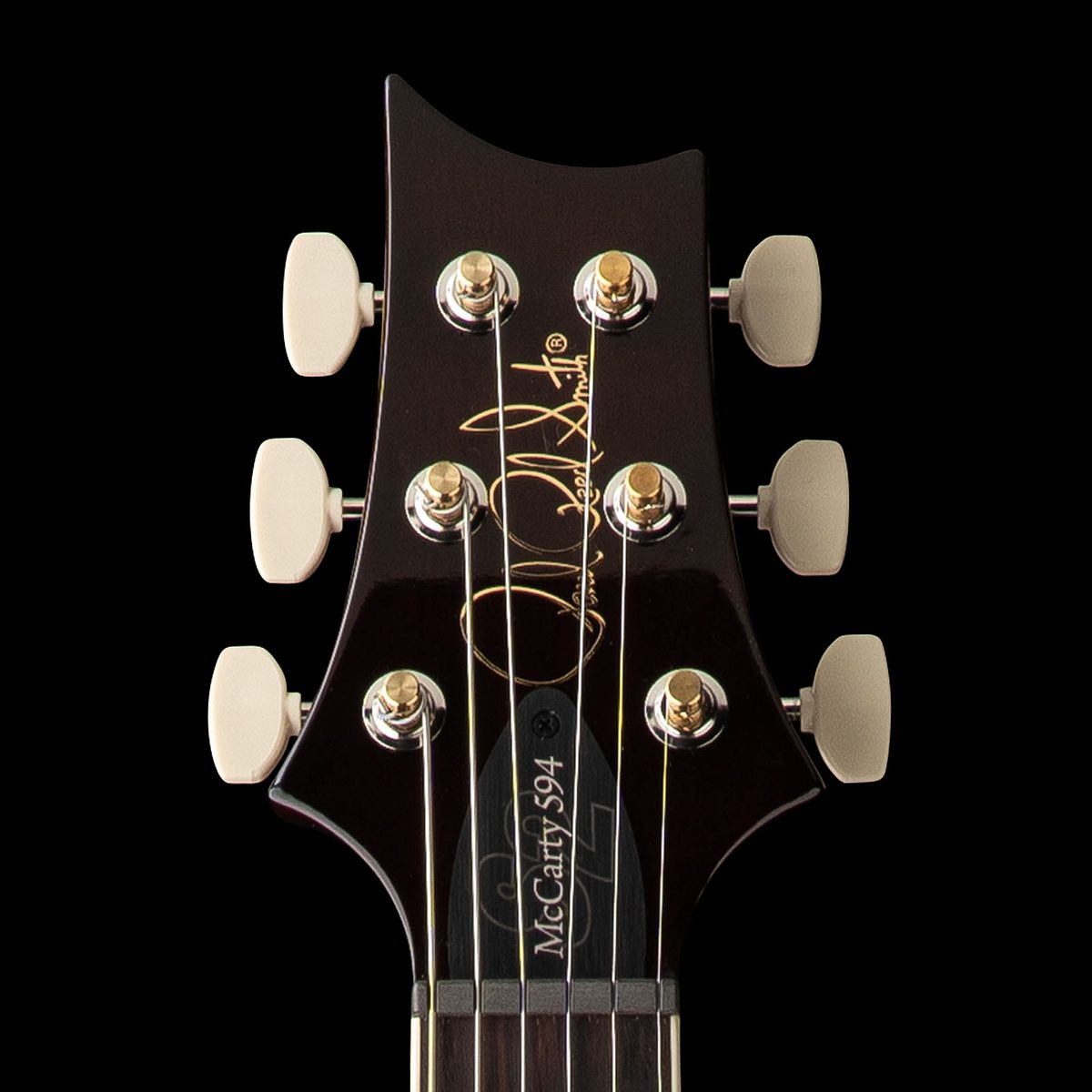

PRS Vintage-Style Non-Locking Tuners with Wing Buttons
Traditional closed-back tuners engineered to promote resonance.

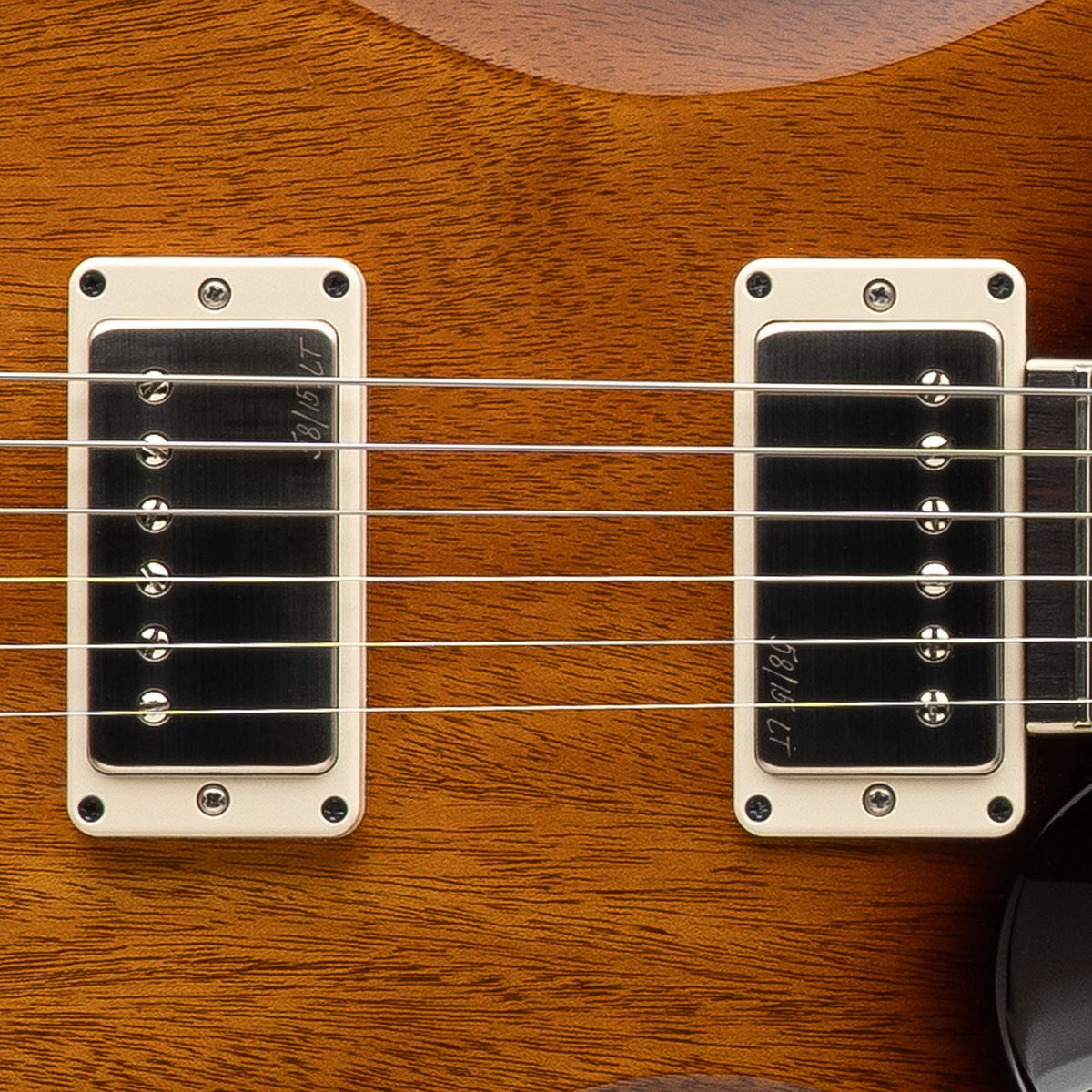

PRS 58/15 LT Pickups
“Low turn” pickups with vintage warm, clear tone.
Specifications
Body | |
Body Construction | Solidbody |
Body Wood | Mahogany |
Top Carve | Asymmetric Bevel |
Neck | |
Number of Frets | 22 |
Scale Length | 24.594” |
Neck Wood | Mahogany |
Neck Construction | Scarfed |
Truss Rod | PRS Double-Acting |
Neck Shape | Pattern Thin |
Neck Depth at the 1/2 Fret | 53/64" |
Neck Depth at the 12 1/2 Fret | 57/64" |
Neck Width at the Nut | 1 11/16" |
Neck Width at the Body | 2 1/4" |
Fretboard Wood | Rosewood w/ Faux Bone Binding |
Fretboard Radius | 10" |
Fretboard Inlay | Birds |
Headstock Logo | Signature, Decal |
Neck/Body Assembly | |
Neck/Body Assembly Type | Set |
Finish | |
Finish Type | High-Gloss Nitro |
Hardware | |
Bridge | PRS Two-Piece |
Tuners | Vintage-Style Non-Locking with “Wing” Buttons |
Hardware Type | Nickel |
Nut | PRS |
Truss Rod Cover | "S2 McCarty 594" |
Electronics | |
Treble Pickup | 58/15 LT |
Bass Pickup | 58/15 LT |
Controls | Two Volume and Two Push/Pull Tone Controls with 3-Way Toggle Pickup Switch |
Additional Info | |
Strings | PRS Signature 10-46 |
Tuning | Standard (6 String): E, A, D, G, B, E |
Case | Premium Gig Bag |
Controls
S2 McCarty 594 Thinline - Controls Description
PRS 58/15 LT treble and bass pickups
Volume and push/pull tone controls for each pickup, 3-way toggle pickup switch
Drawing shows McCarty 594 silhouette, 594 SC is a single-cutaway guitar, and the toggle switch for the 594 Thinline is placed next to the volume and tone knobs
3-way toggle pickup switch
Position 1 (down) - treble pickup
Position 2 - treble and bass pickups
Position 3 (up) - bass pickup
Push/pull tone pots
Down - humbucker mode
Up - single coil mode
