S2 McCarty 594 Thinline
Gig-Ready Power
The S2 McCarty 594 Thinline is an all-mahogany, thin-body guitar with a powerful voice. Whether you are looking for authentic humbucking tones or nuanced, sweet single-coil sounds, the S2 McCarty 594 Thinline can seamlessly master both sonic territories thanks to its 58/15 LT “S” pickups and dual volume and push/pull tone controls.
The S2 McCarty 594 Thinline is addictive to play, thanks in part to its all-mahogany body, versatile control layout, and bound 22-fret Pattern Thin neck. The distinctive, powerful voice is backed by modern construction, so it plays in tune, stays in tune, and is intonated the entire length of the neck. A zinc two-piece bridge and vintage-style tuners anchor this guitar and stay true to the promise of the McCarty family.
Designed to capture the heart of the McCarty family of instruments and stay true to the S2 Series spirit, the S2 McCarty 594 Thinline stands on its own as a gig-ready workhorse for the player who wants to cover a lot of musical ground.
Featured Specifications

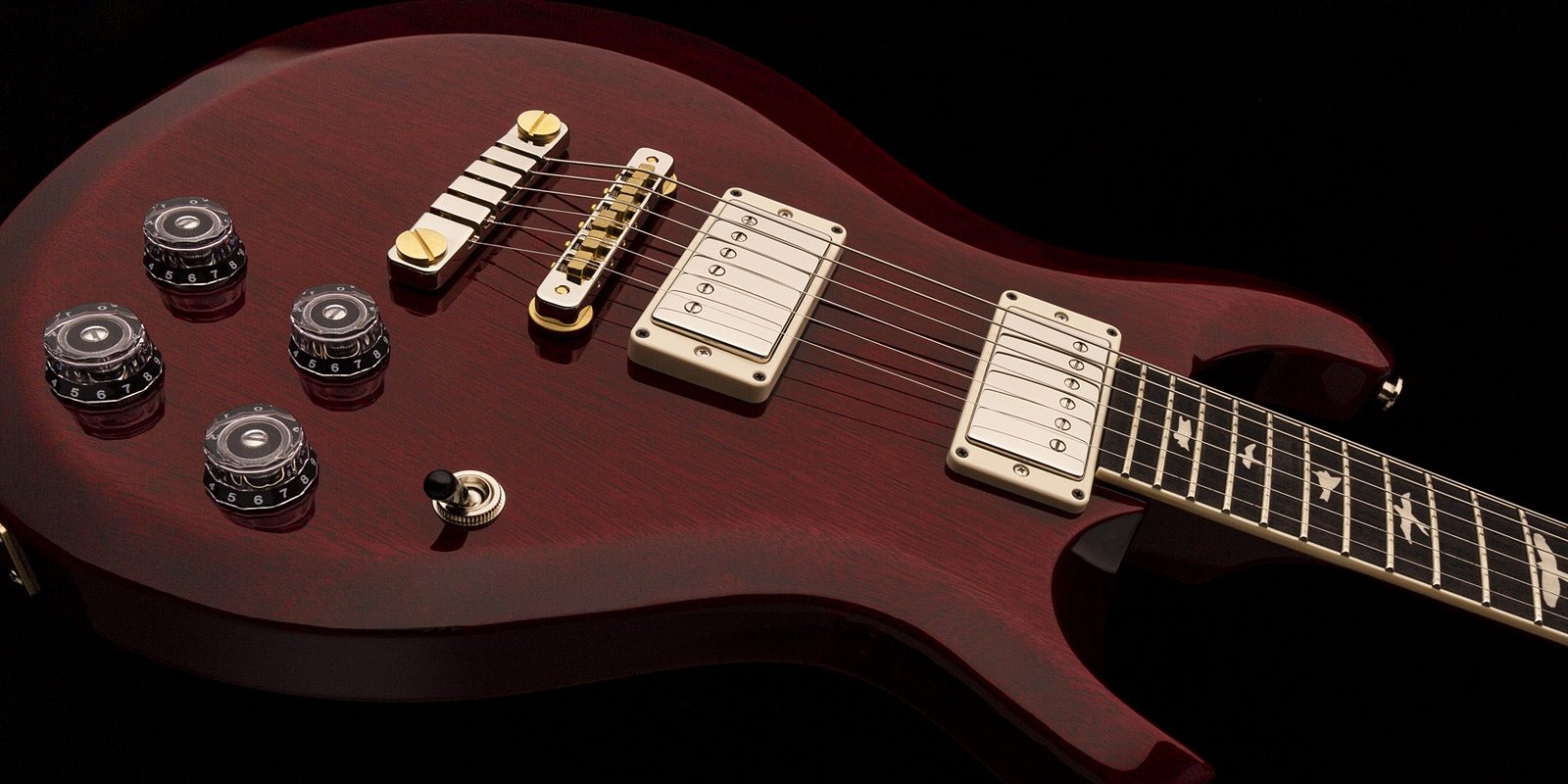

PRS Two-Piece Bridge
Made of zinc and brass, this bridge has four contact points and added mass, enhancing the natural tone of the guitar and helping to create a more resonant instrument.

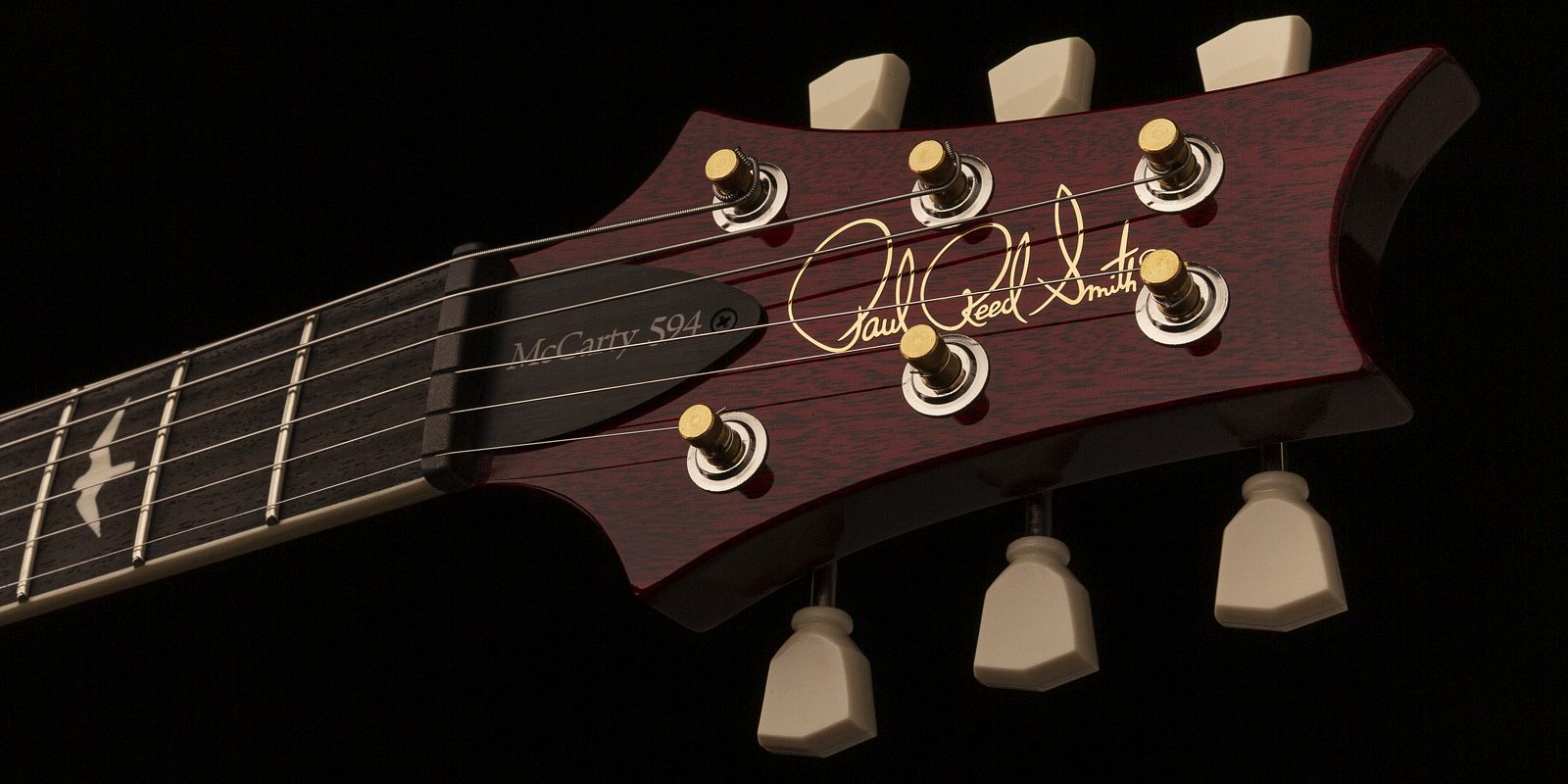

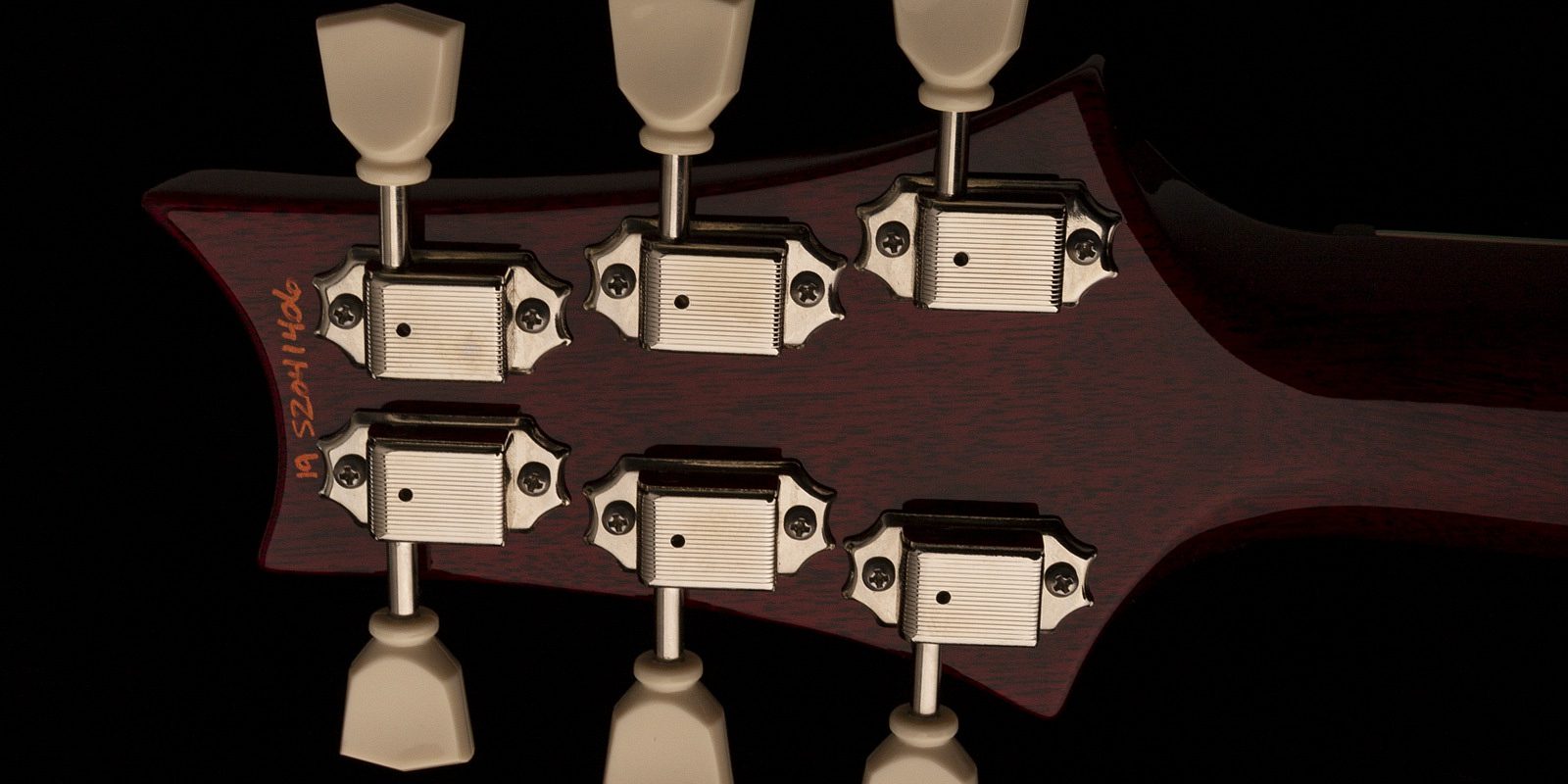

Vintage-Style Tuners
Traditional closed-back tuners engineered to promote resonance.
PRS 58/15 LT “S”
“Low turn” pickups with vintage warmth and welcome clarity, designed to PRS’s specifications.
Specifications
Body | |
Body Construction | Solidbody |
Body Wood | Mahogany |
Top Carve | Asymmetric Bevel |
Neck | |
Number of Frets | 22 |
Scale Length | 24.594” |
Neck Wood | Mahogany |
Neck Construction | Scarfed |
Truss Rod | PRS Double-Acting |
Neck Shape | Pattern Thin |
Neck Depth at the 1/2 Fret | 53/64" |
Neck Depth at the 12 1/2 Fret | 57/64" |
Neck Width at the Nut | 1 11/16" |
Neck Width at the Body | 2 1/4" |
Fretboard Wood | Rosewood w/ Faux Bone Binding |
Fretboard Radius | 10" |

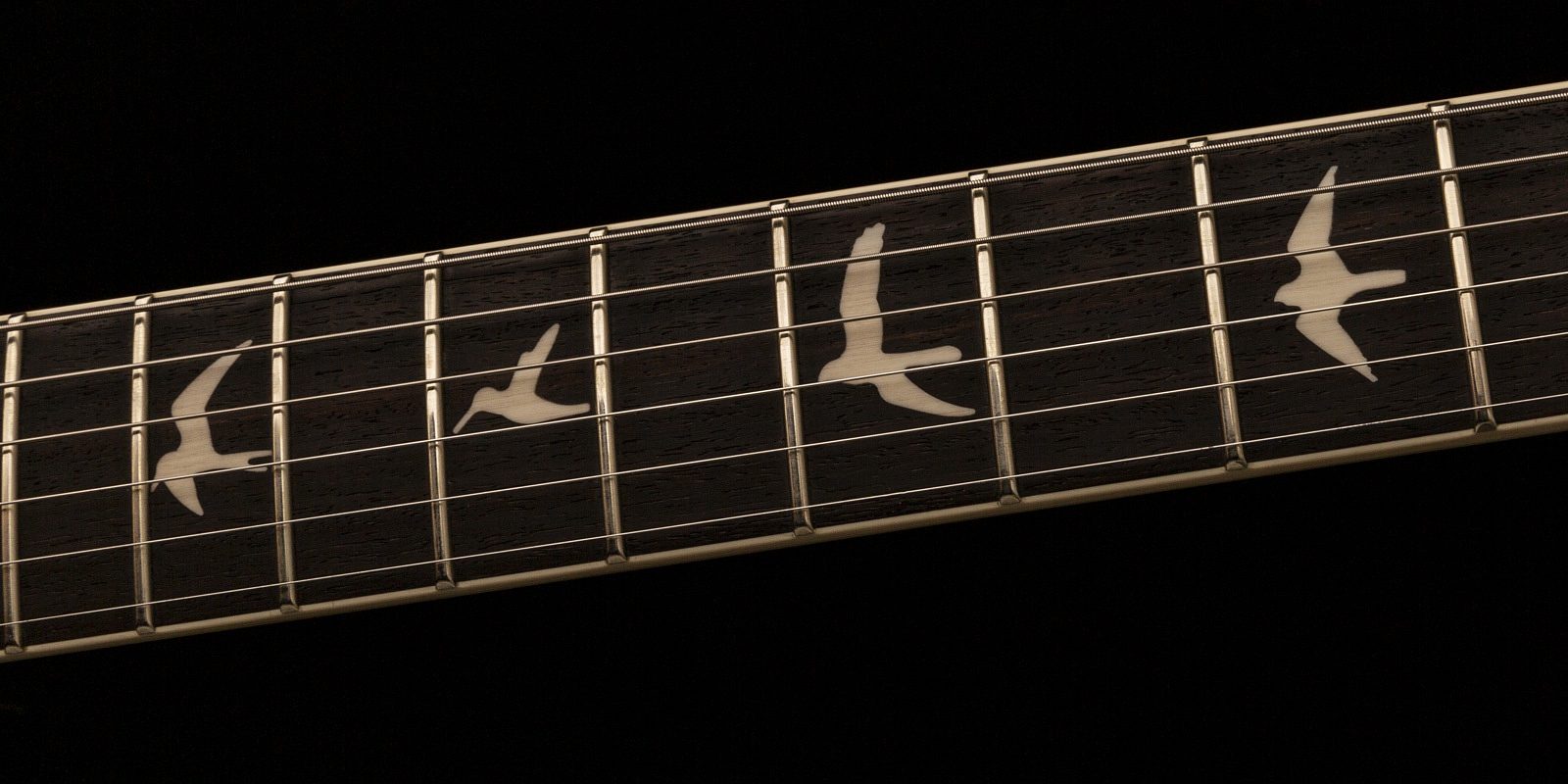

Fretboard Inlay | Birds |
Headstock Logo | Signature, Decal |
Neck/Body Assembly | |
Neck/Body Assembly Type | Set |
Finish | |
Finish Type | High-Gloss Nitro |
Hardware | |
Bridge | PRS Two-Piece |
Tuners | Vintage-Style |
Hardware Type | Nickel |
Nut | PRS |
Truss Rod Cover | "McCarty 594" |
Electronics | |
Treble Pickup | 58/15 LT "S" |
Bass Pickup | 58/15 LT "S" |
Controls | Two Volume and Two Push/Pull Tone Controls with 3-Way Toggle Pickup Switch |
Additional Info | |
Strings | PRS Signature 10-46 |
Tuning | Standard (6 String): E, A, D, G, B, E |
Case | Gig Bag |
Controls
S2 McCarty 594 Thinline - Controls Description
PRS 58/15 “S” LT treble and bass pickups
Volume and push/pull tone controls for each pickup, 3-way toggle pickup switch
Drawing shows McCarty 594 silhouette, 594 SC is a single-cutaway guitar, and the toggle swtich for the 594 Thinline is placed next to the volume and tone knobs
3-way toggle pickup switch
Position 1 (down) - treble pickup
Position 2 - treble and bass pickups
Position 3 (up) - bass pickup
Push/pull tone pots
Down - humbucker mode
Up - single coil mode
