Custom 24 Piezo - 2023
Custom 24 Piezo - 2023
NOTE: This is a previous model year product. To view current products, click here.
Color:
24 Frets, Infinite Range of Tones

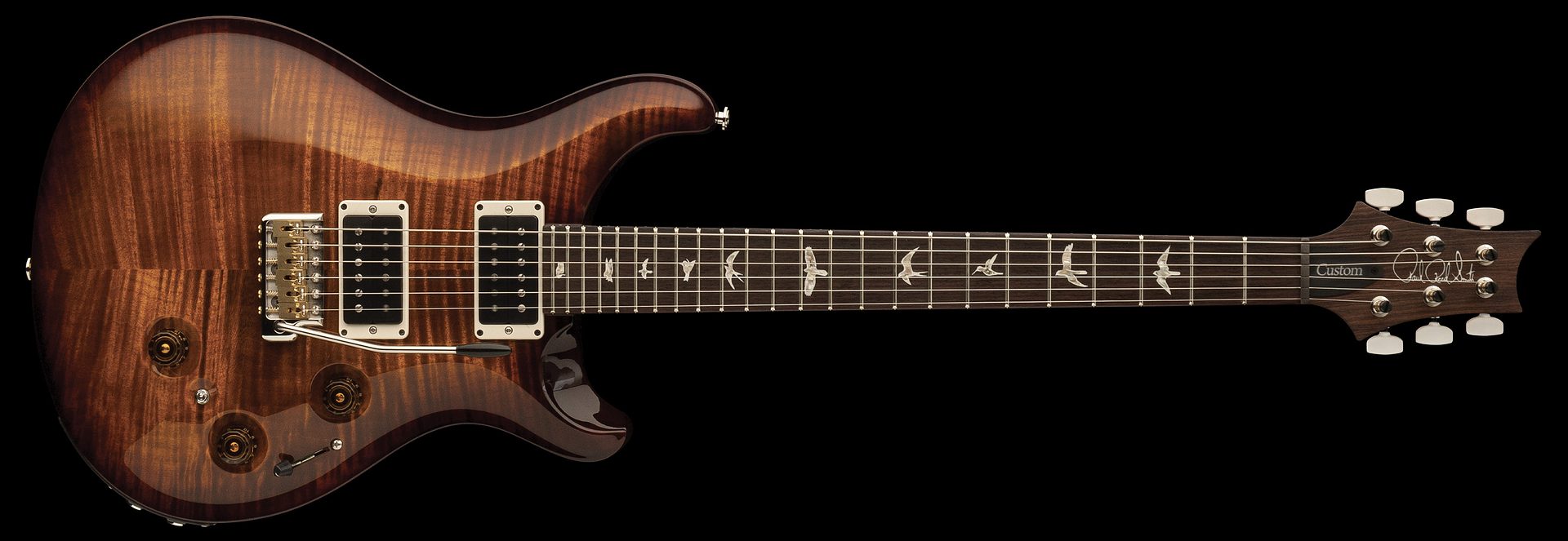

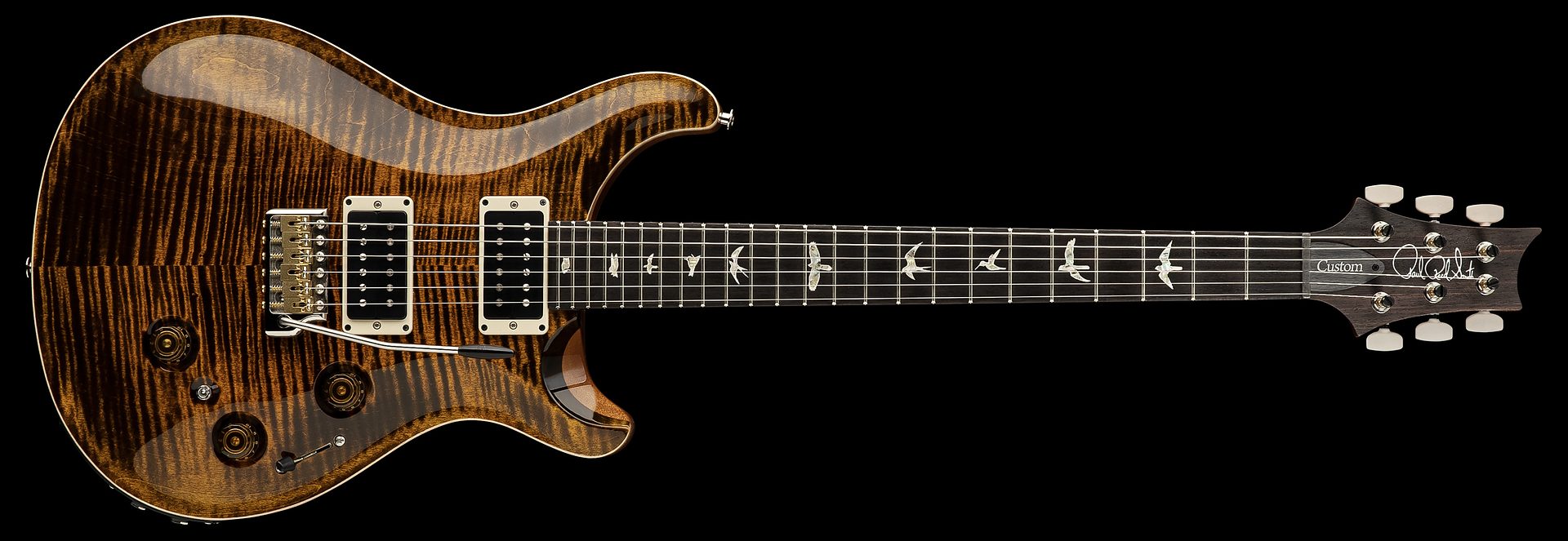

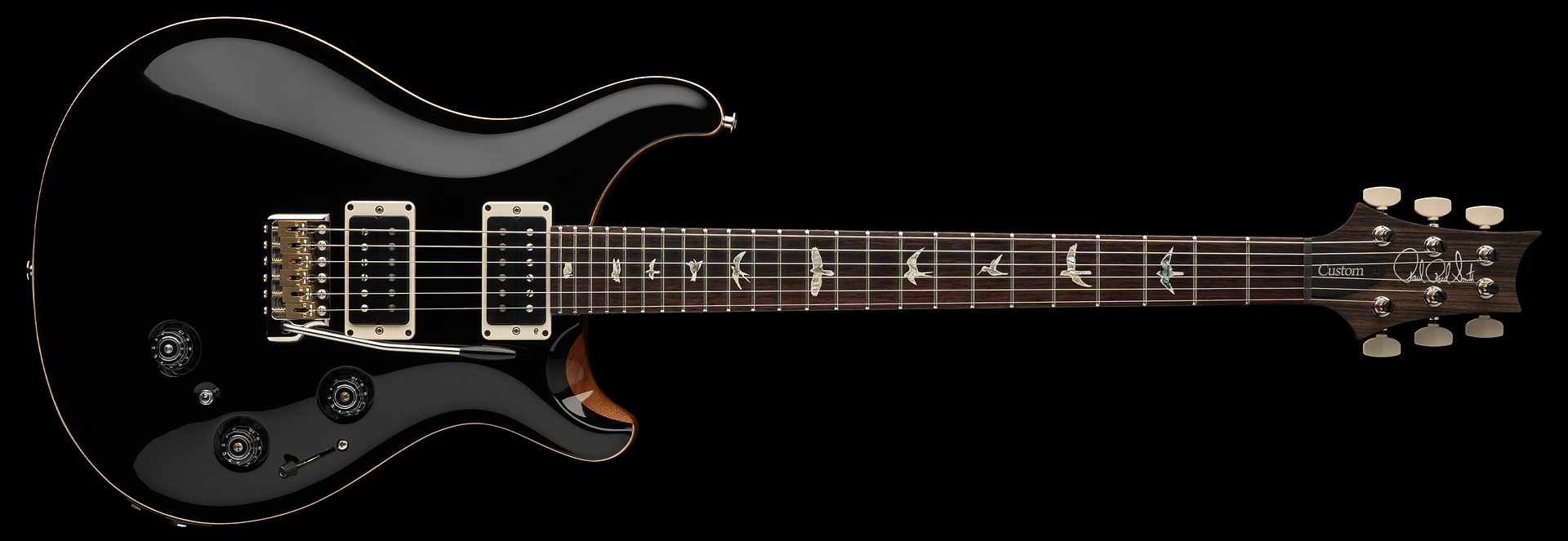

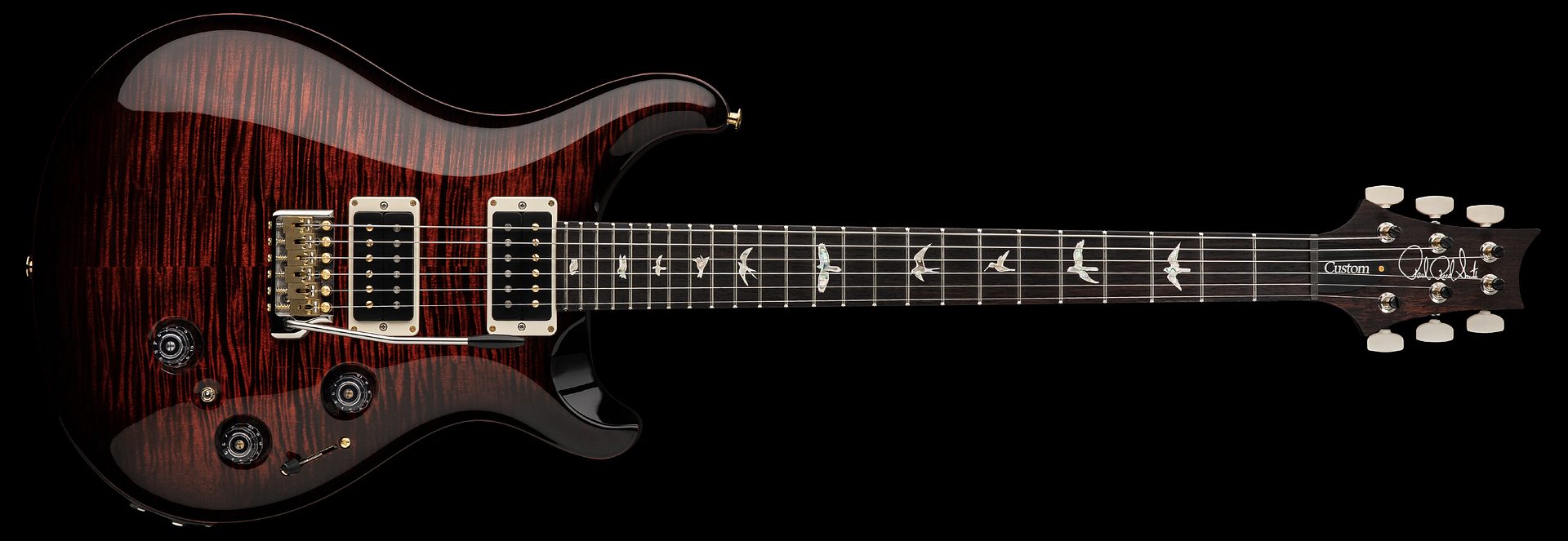

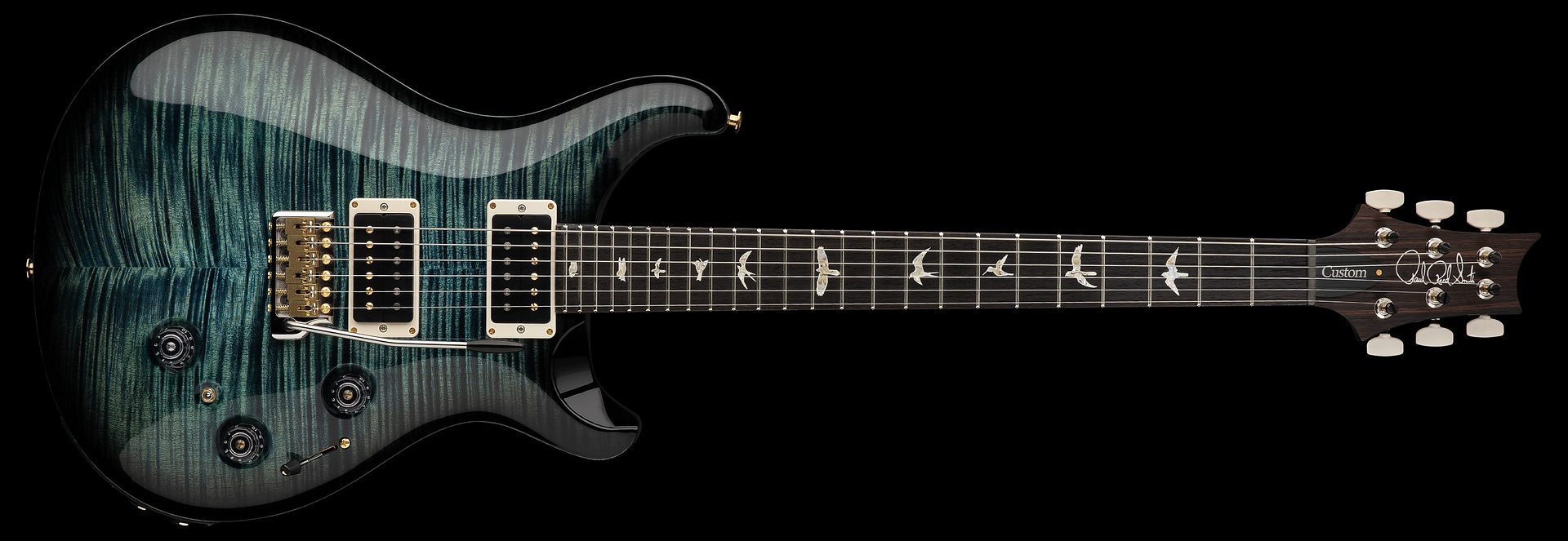

The Custom 24 Piezo is a 24-fret solidbody piezo-equipped guitar that effortlessly achieves classic humbucker tones and authentic acoustic sounds in one instrument. The added versatility of PRS’s patented Gen III tremolo gives musicians a new and unique tool to add to their lineup.

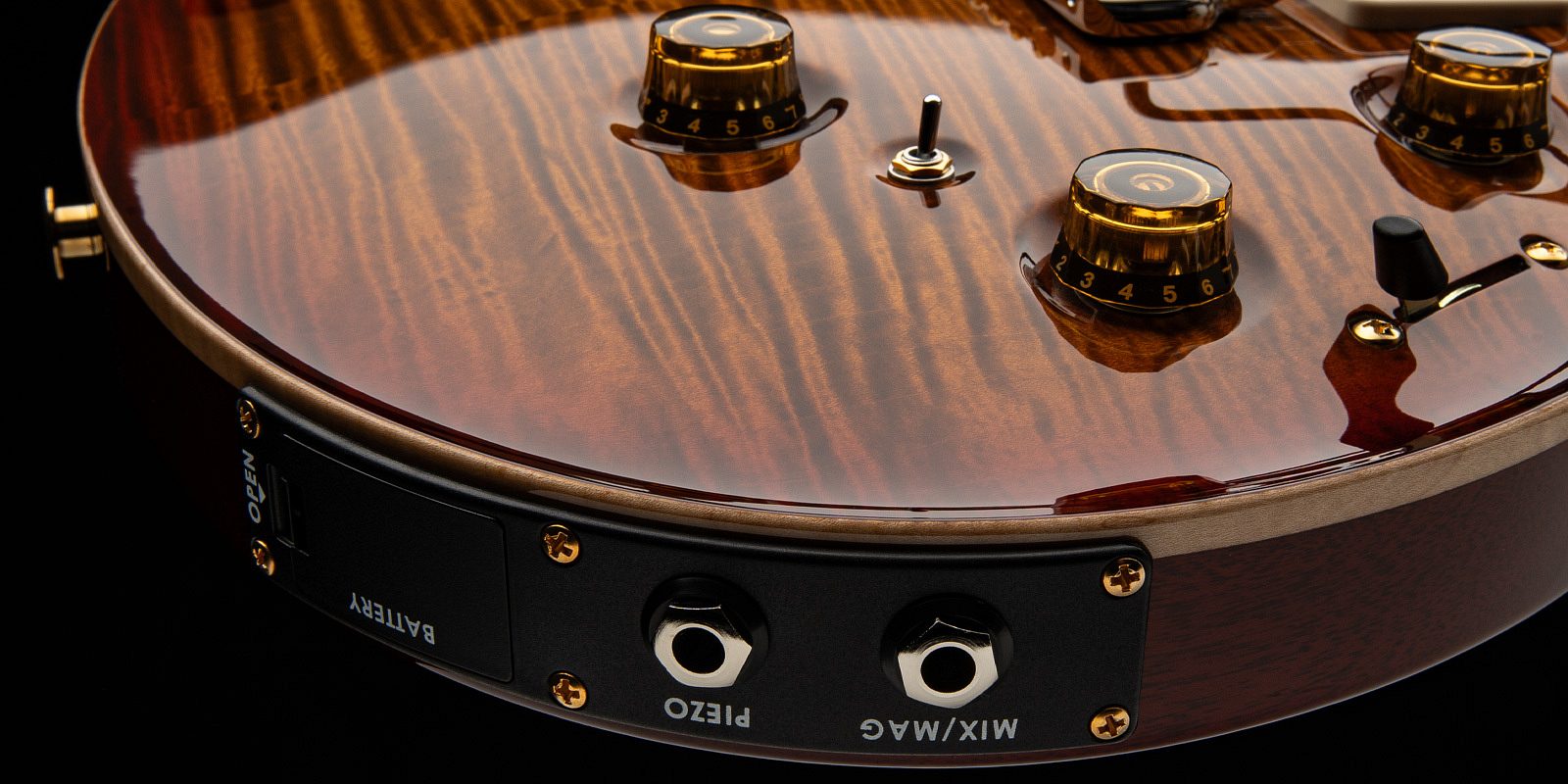

The Custom 24 Piezo has two output jacks, allowing guitarists to plug into their favorite electric or acoustic guitar amp or DI into a soundboard. By utilizing the separate blend control, the tone of the 85/15 pickups can also be combined with the piezo acoustic sounds through a single output. With a nearly infinite range of tones and the added versatility and reliability of PRS’s proprietary tremolo bridge, the Custom 24 Piezo is a perfect “go-to” guitar for players of all kinds.
For 2024, PRS Guitars is updating the tuning machines on many of our Core guitars. While, aesthetically, our new Wing buttons are designed to echo the 12th fret bird wingspan design, they were first and foremost designed for tonal reasons all the way back in 1982. Because these buttons are lighter weight than their metal predecessors, they are subtracting less energy from the vibrating strings, thus helping the guitar ring longer and at a more musical note.
Featured Specifications

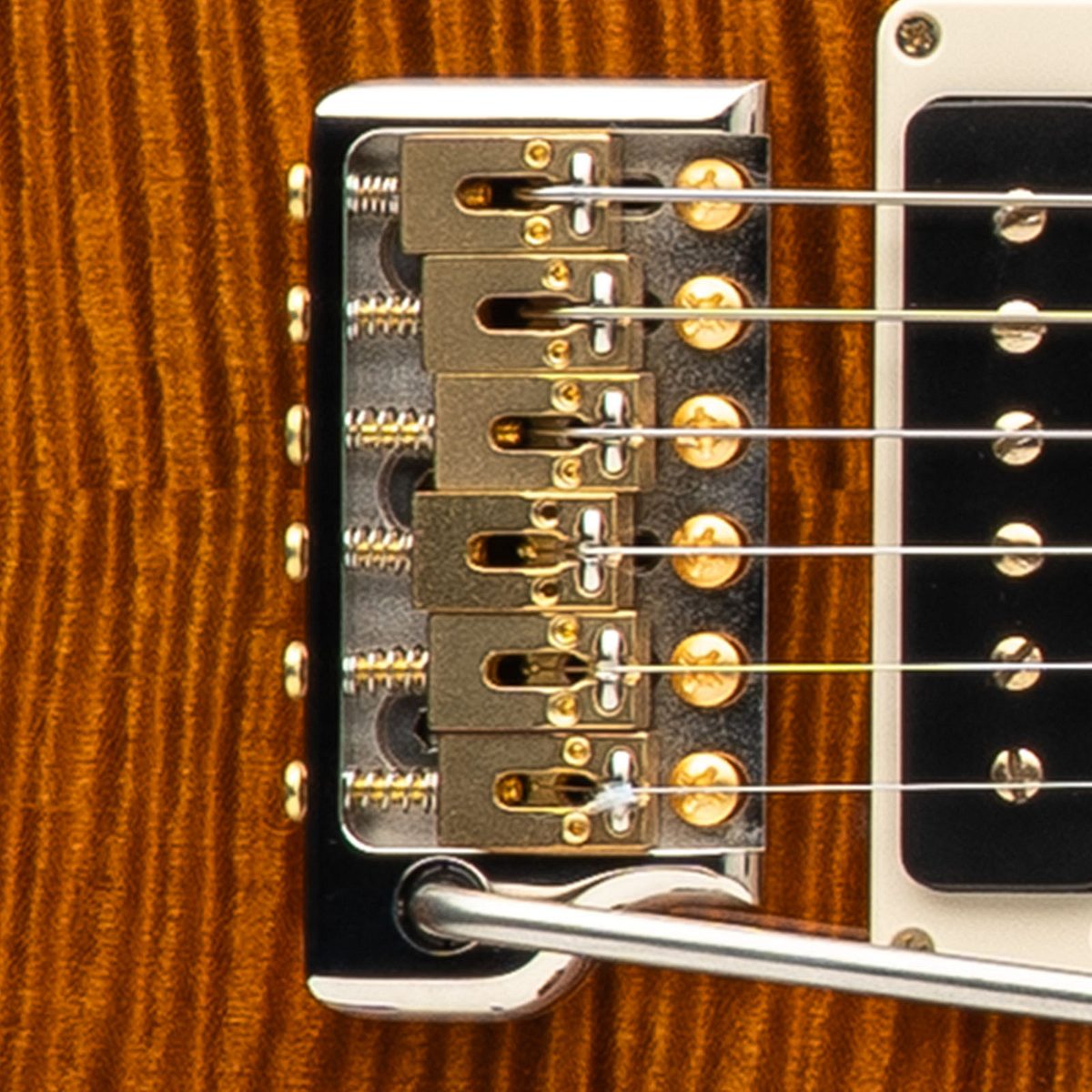

PRS Patented Tremolo, Gen III
Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.

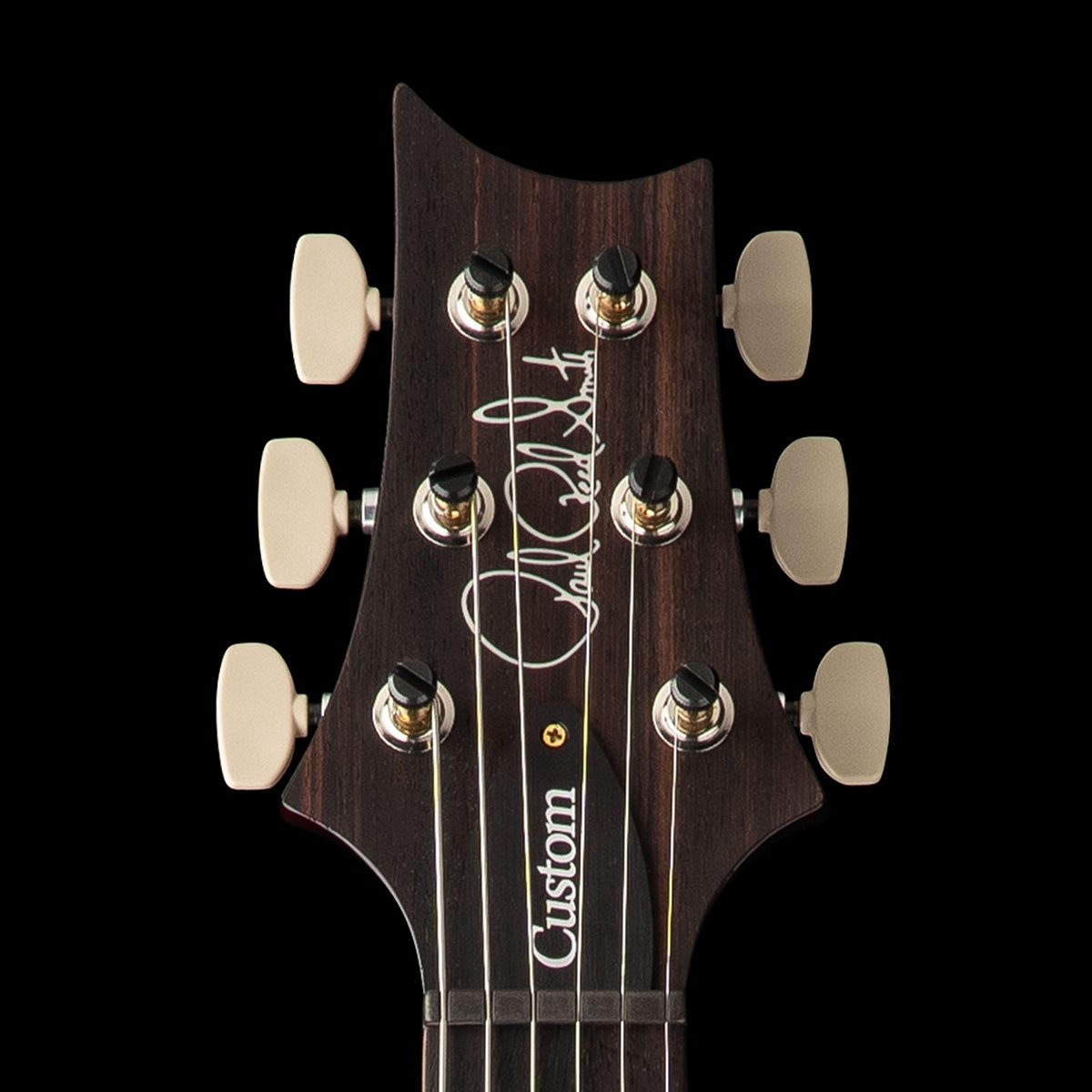

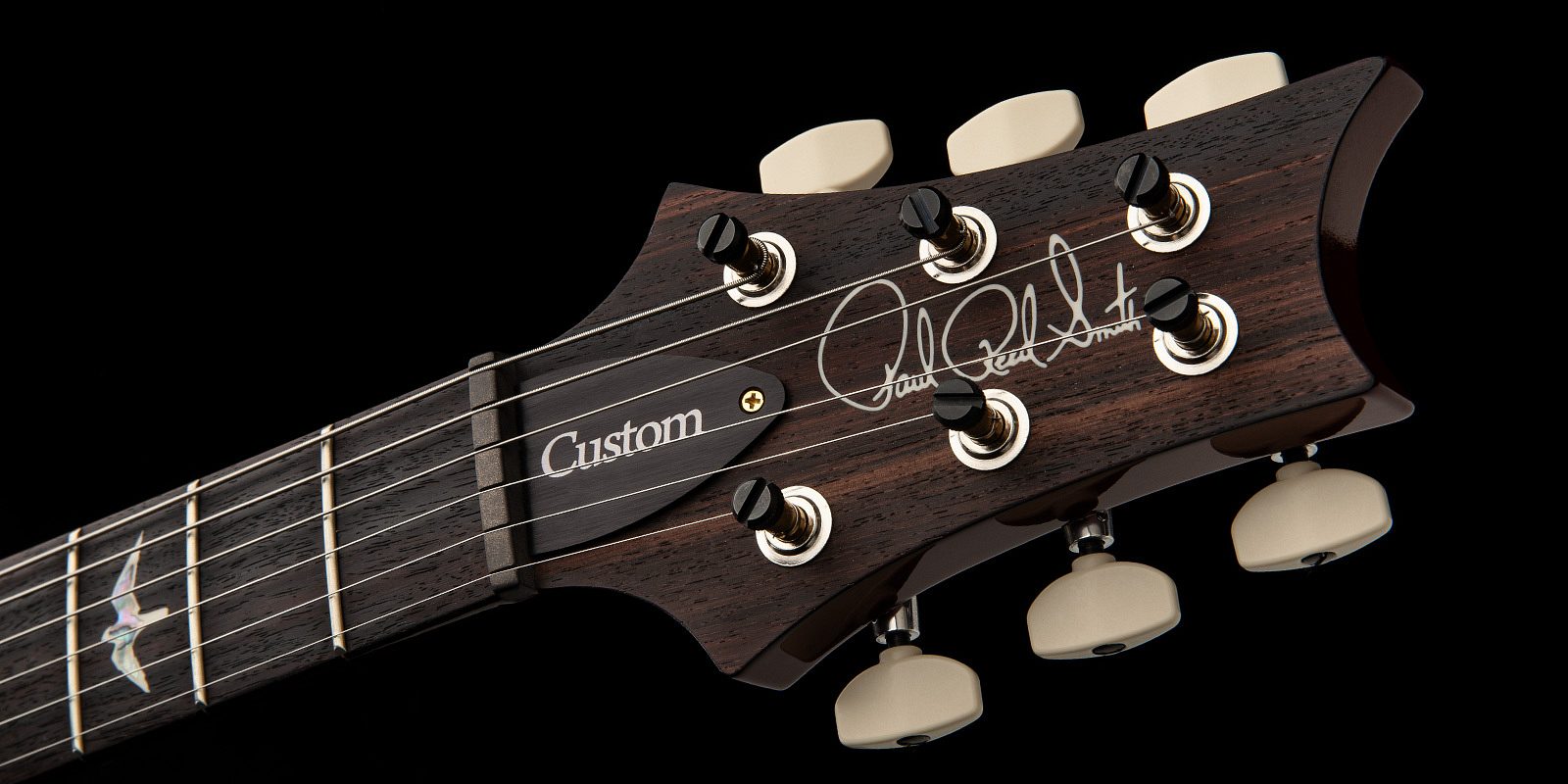

PRS Phase III Locking Tuners with Wing Buttons
Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

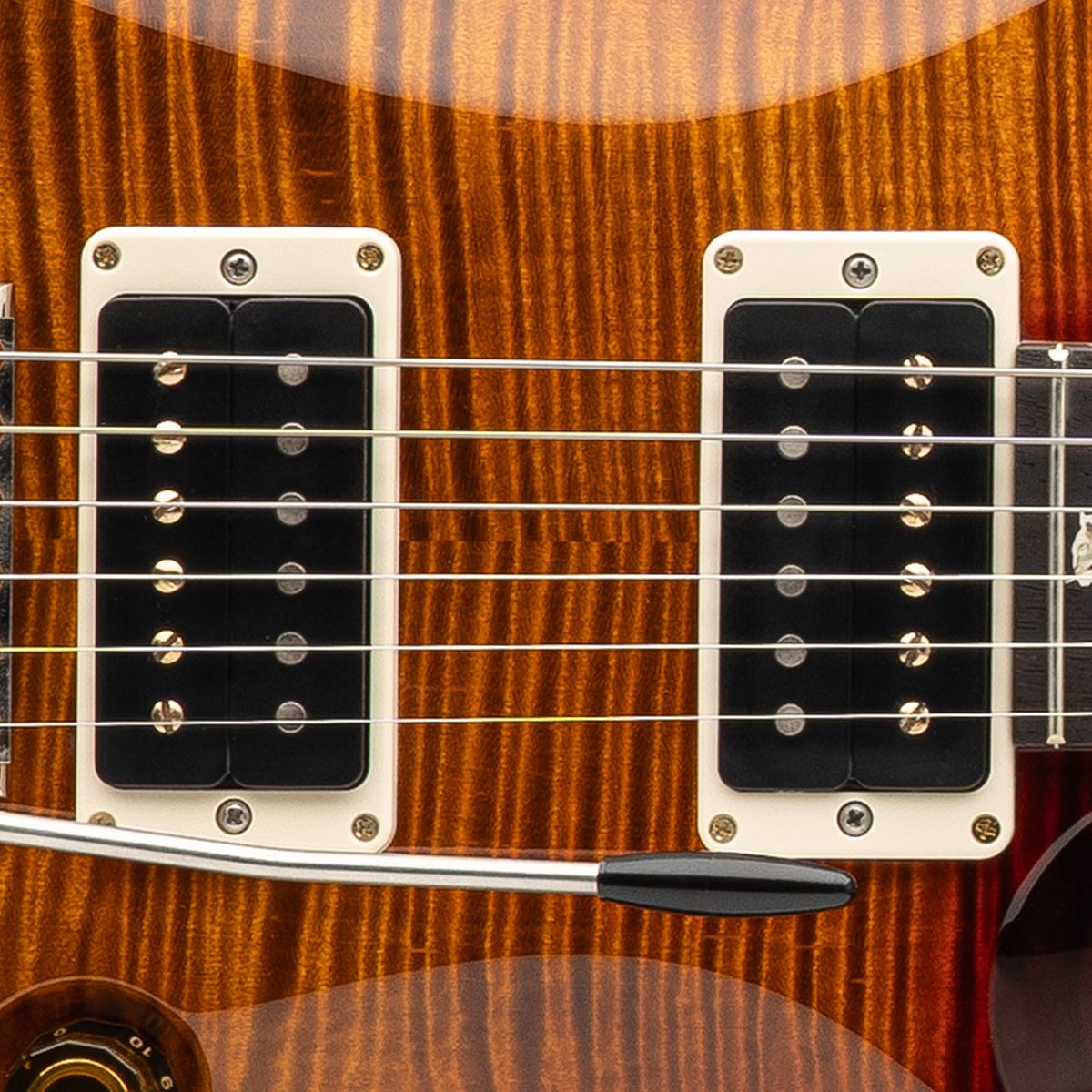

PRS 85/15 Pickups
Uncovered pickups with remarkable clarity and extended high and low end, perfect for more modern applications.
Specifications
| Body | |
|---|---|
| Body Construction | Solidbody |

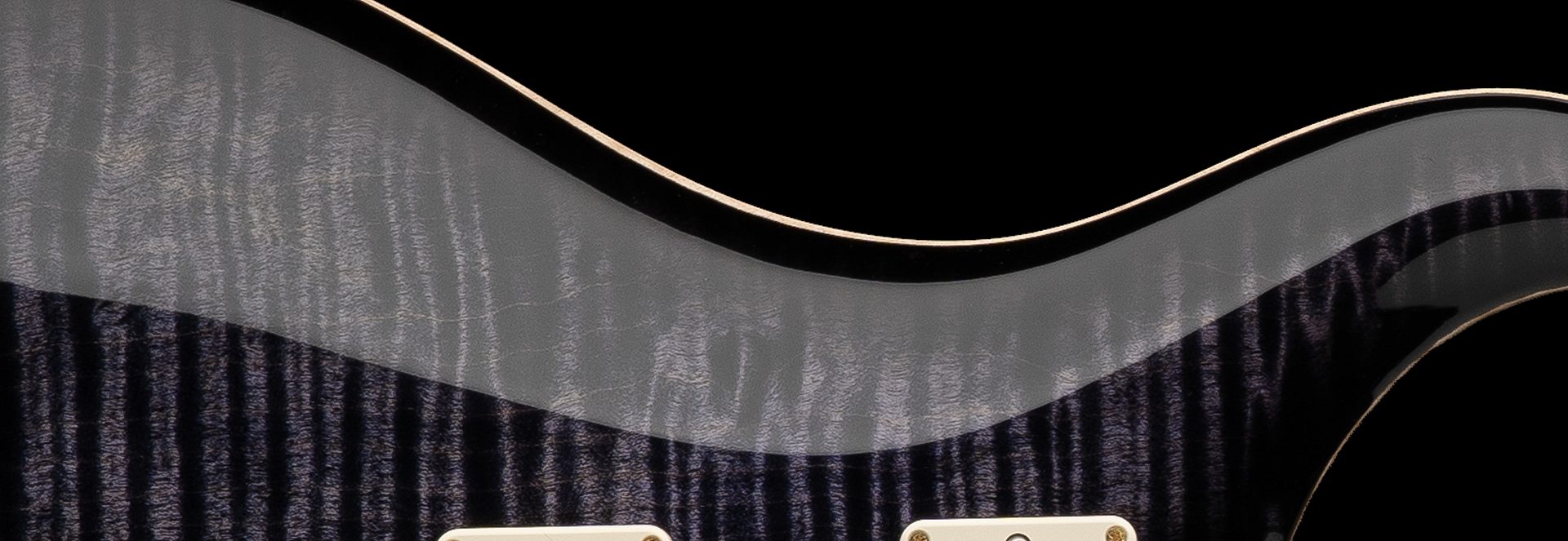

| Top Wood | Maple |
| Back Wood | Mahogany |
| Top Carve | Violin |
| Neck | |
|---|---|
| Number of Frets | 24 |
| Scale Length | 25" |
| Neck Wood | Mahogany |
| Neck Construction | One-Piece |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Thin |
| Neck Depth at the 1/2 Fret | 53/64" |
| Neck Depth at the 12 1/2 Fret | 57/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |

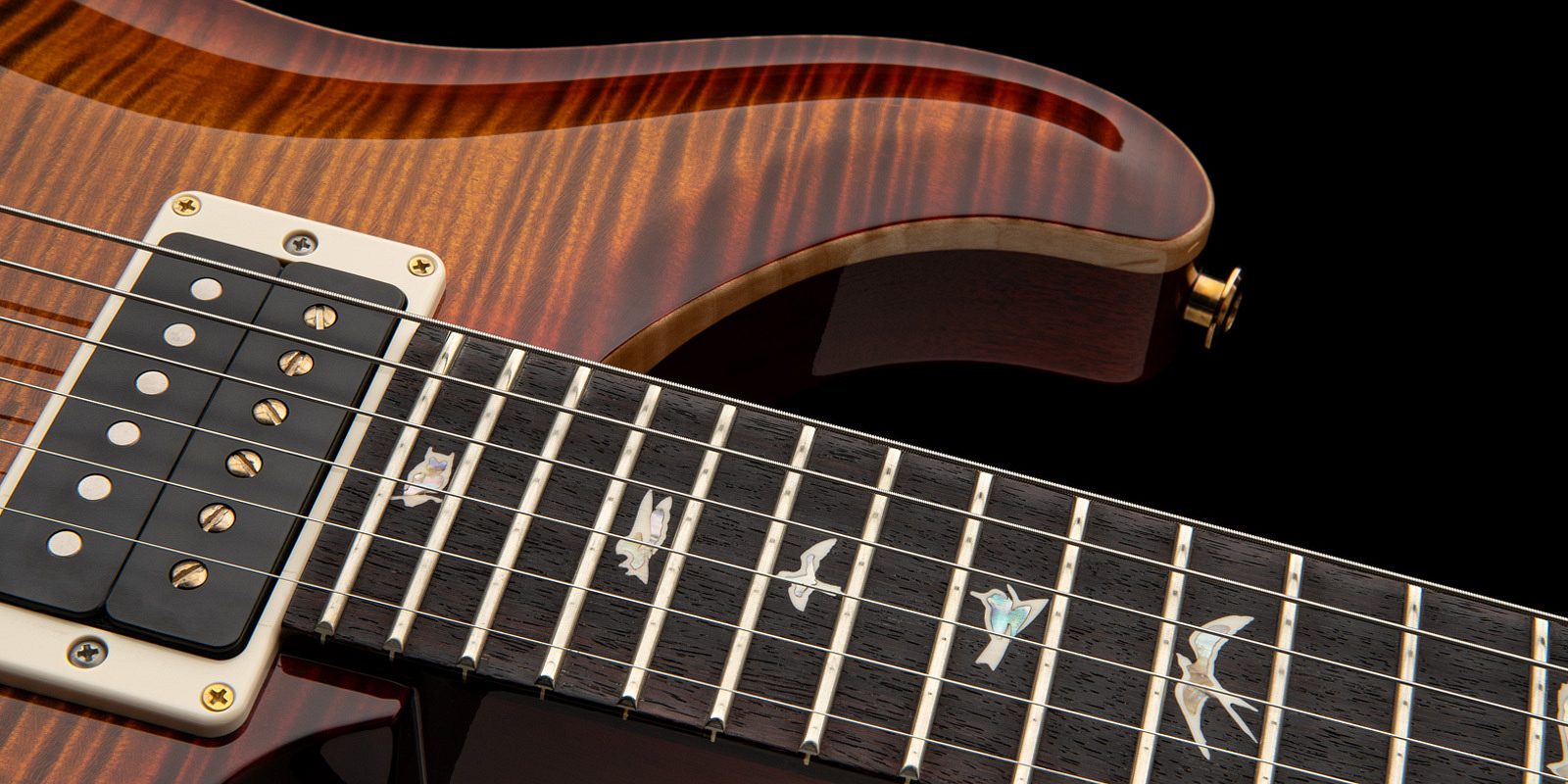

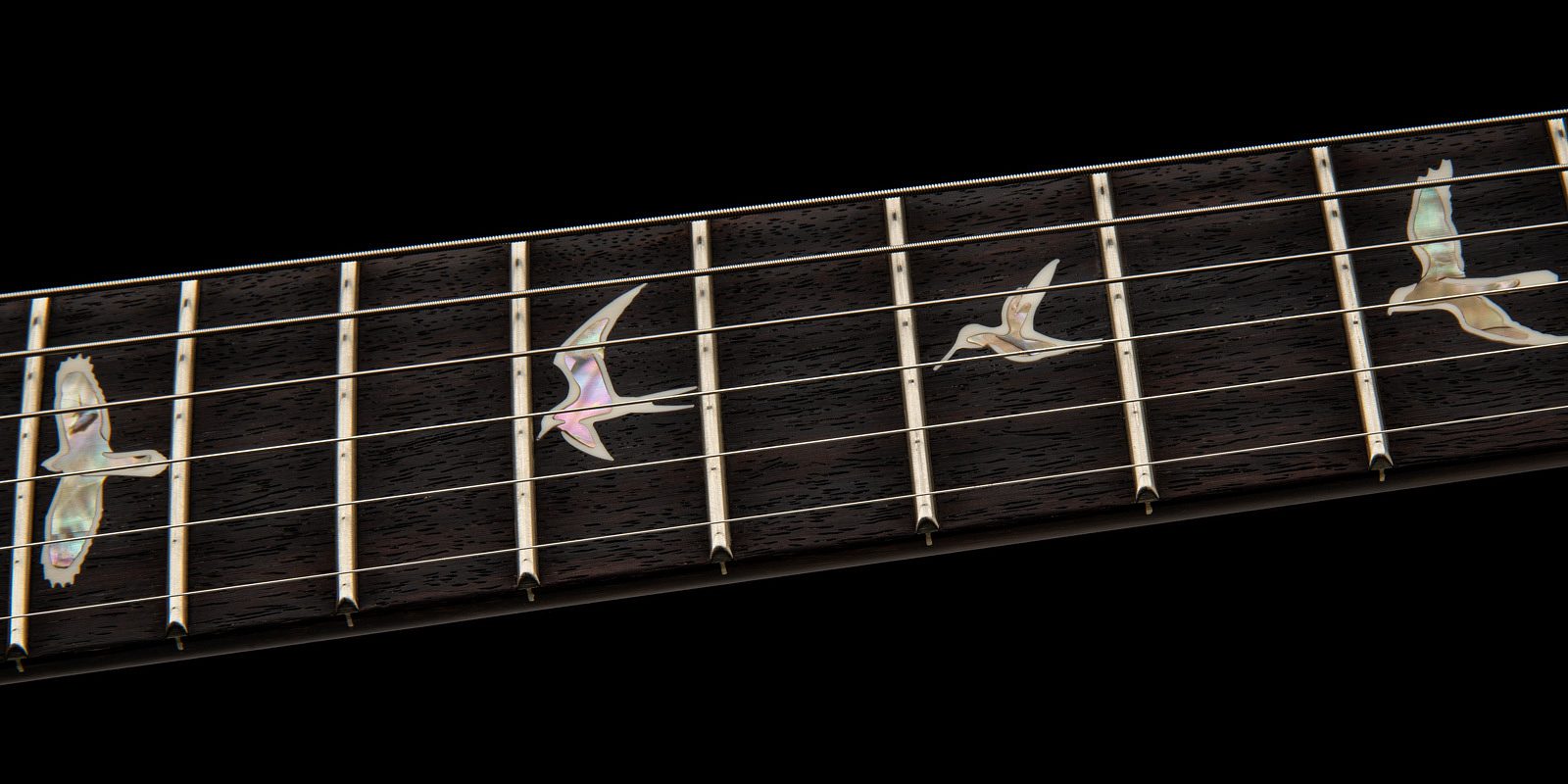

| Fretboard Inlay | Birds |
| Headstock Logo | Signature, Inlaid |
| Neck/Body Assembly | |
|---|---|
| Neck/Body Assembly Type | Set |
| Finish | |
|---|---|
| Finish Type | High-Gloss Nitro |
| Hardware | |
|---|---|
| Bridge | PRS Patented Tremolo, Gen III Piezo |
| Tuners | PRS Phase III Locking Tuners with Wing Buttons |
| Hardware Type | Nickel |
| Nut | PRS |
| Truss Rod Cover | "Custom" |
| Electronics | |
|---|---|
| Treble Pickup | 85/15 |
| Bass Pickup | 85/15 |
| Controls | Volume and Tone Control with 5-Way Blade Pickup Switch and LR Baggs/PRS Piezo (3-Way Selector and Blend Knob) |
| Additional Info | |
|---|---|
| Strings | PRS Signature 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Hardshell Case |
| Options | 10 Top with Hybrid Hardware |
Controls
Custom 24 Piezo - Controls Description
5-way blade pickup switch
Position 1 (down) - treble pickup
Position 2 - treble humbucking pickup and bass single coil Position 3 - treble and bass humbucking pickups
Position 4 - treble single coil and bass single coil
Position 5 (up) - bass pickup
* The mini-toggle switch activates the piezo system.
Accolades
"The Custom 24 Piezo is without a doubt the best and most versatile guitar I have ever owned. I play them every night live. The piezo system gives us that acoustic sound that we’ve been wanting for years. Our FOH soundman loves them and it makes us sound better without a doubt. I didn’t do any alterations to the specs either. It was perfect right out of the case.”
- Mikael Akerfeldt (Opeth)
